Author Topic: Tak bought an HD700, prepare the tar and feathers *Updated*  (Read 4596 times)

0 Members and 2 Guests are viewing this topic.

madaboutaudio

  • Jude's Closet Lover
  • Able Bodied Sailor
  • Pirate
  • ***
  • Brownie Points: +32/-28
  • Offline Offline
  • Posts: 213
Re: Tak bought an HD700, prepare the tar and feathers
« Reply #10 on: July 27, 2015, 02:42:36 PM »

From a design esthetics pov, the HD700 is timeless.
Logged

Hifi01170

  • Powder Monkey
  • *
  • Brownie Points: +2/-1
  • Offline Offline
  • Posts: 33
Re: Tak bought an HD700, prepare the tar and feathers
« Reply #11 on: July 27, 2015, 02:45:44 PM »

Anax is interested as well??
Logged

maverickronin

  • Objectively Sound
  • Able Bodied Sailor
  • Pirate
  • ***
  • Brownie Points: +58/-2
  • Offline Offline
  • Posts: 670
  • Your friendly neighborhood audio skeptic
Re: Tak bought an HD700, prepare the tar and feathers
« Reply #12 on: July 27, 2015, 03:10:20 PM »

At least it's comfy.

You could probably put some KSC-75 drivers in it if you wanted it to be listenable too.

I do understand your morbid fascination with this kind of stuff though.
Logged
Heaven's closed - Hell's sold out - So I walk on Earth.

Hands

  • Pizza the Hutt
  • Mate
  • Pirate
  • ****
  • Brownie Points: +331/-8
  • Offline Offline
  • Posts: 1591
  • Master of Revelatory Bird Calls and Fine Art
Re: Tak bought an HD700, prepare the tar and feathers
« Reply #13 on: July 27, 2015, 03:37:11 PM »

I still think the EL-8 closed is worse/more painful. Have fun, Tak!
Logged
The other master and I invite you to visit our digital museum of fine art and revelatory bird calls: https://www.facebook.com/SchrodsonkMuseum

burnspbesq

  • Able Bodied Sailor
  • Pirate
  • ***
  • Brownie Points: +50/-23
  • Offline Offline
  • Posts: 640
Re: Tak bought an HD700, prepare the tar and feathers
« Reply #14 on: July 27, 2015, 03:48:48 PM »

As a former Grado RS-2 owner, I'm in no position to mock Tak for taking a wrong turn in his headphone journey.
Logged

aufmerksam

  • Able Bodied Sailor
  • Pirate
  • ***
  • Brownie Points: +33/-1
  • Offline Offline
  • Posts: 277
  • the very worst
Re: Tak bought an HD700, prepare the tar and feathers
« Reply #15 on: July 27, 2015, 04:59:38 PM »

As a former Grado RS-2 owner, I'm in no position to mock Tak for taking a wrong turn in his headphone journey.

I dunno, I think everyone has been lured down the path of grado at some point, but he HD700 has been pilloried by pyrates for several years now. I actually appreciate Tak is willing to waste his time and money on this piece of shit.
 :boom:
Logged

spoony

  • 5 years late on rickrolling
  • Able Bodied Sailor
  • Pirate
  • ***
  • Brownie Points: +13/-0
  • Offline Offline
  • Posts: 274
  • ex c61746961
Re: Tak bought an HD700, prepare the tar and feathers
« Reply #16 on: July 27, 2015, 05:04:52 PM »

for quite cheap
$400 isn't cheap for such a POS. GL anyway.
Logged

Azteca X

  • Audio Tlatoani
  • Able Bodied Sailor
  • Pirate
  • ***
  • Brownie Points: +27/-1
  • Offline Offline
  • Posts: 232
Re: Tak bought an HD700, prepare the tar and feathers
« Reply #17 on: July 27, 2015, 07:20:31 PM »

I dunno, I think everyone has been lured down the path of grado at some point, but he HD700 has been pilloried by pyrates for several years now. I actually appreciate Tak is willing to waste his time and money on this piece of shit.
 :boom:

I mean, what's next after a few dozen mostly-garbage vintage headphones? Buy a sensible, universally adored headphone? Nonsense.
Logged

takato14

  • Designated furfag on deck
  • Able Bodied Sailor
  • Pirate
  • ***
  • Brownie Points: +85/-11
  • Online Online
  • Posts: 446
  • Likes it fuzzy
Re: Tak bought an HD700, prepare the tar and feathers
« Reply #18 on: July 27, 2015, 08:55:38 PM »

I'm not sure what I expected to see when I got up. :)p13

I hope we can all have fun with this. Even worst case scenario I still learn something.



After a bit of talking with Bill, the general conclusion was that the HD700 would be a difficult headphone to fix. I agree with this wholeheartedly. That being said, there still has to be something that can be done. In these few days before I receive it, I'm doing some research on the headphone, damping materials, and determining a primary target.

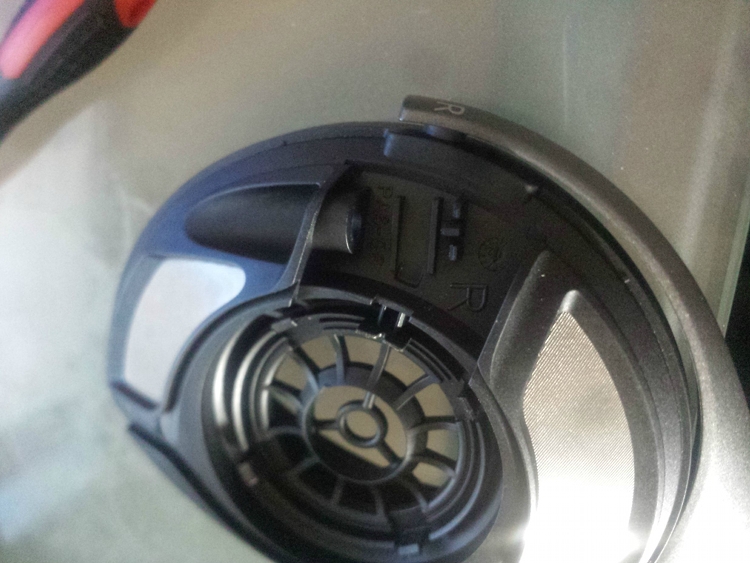

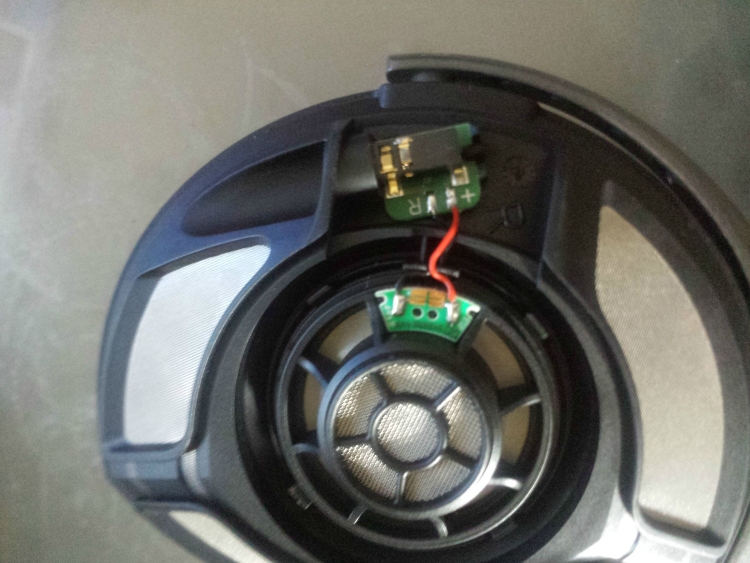

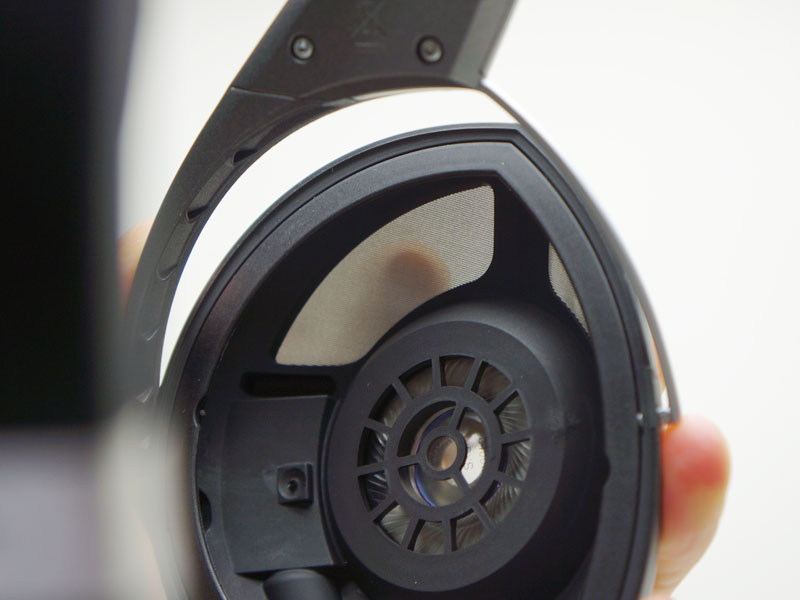

The first thing I looked into was the construction of the earcup. It took a while to find but I'm already seeing a lot of red flags. I suspect the main problem here is the nature of the HD700's baffle plate. The entire mount for the HD700 driver is made of plastic. It looks pretty fucking cheap, and there's nothing between the driver and baffle. Just hard plastic on hard plastic. Bad. My prediction is that something will end up in here by the time this mod is done.

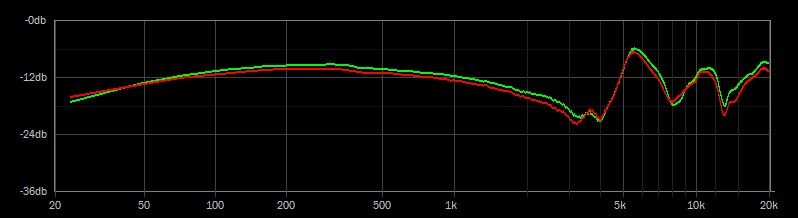

Soundwise, there's obviously a major problem at about 6kHz. This appears to be what people have the most trouble with when it comes to this headphone. The resounding peaks aren't particularly comforting to look at either, but the 6kHz appears to be the most prominent.

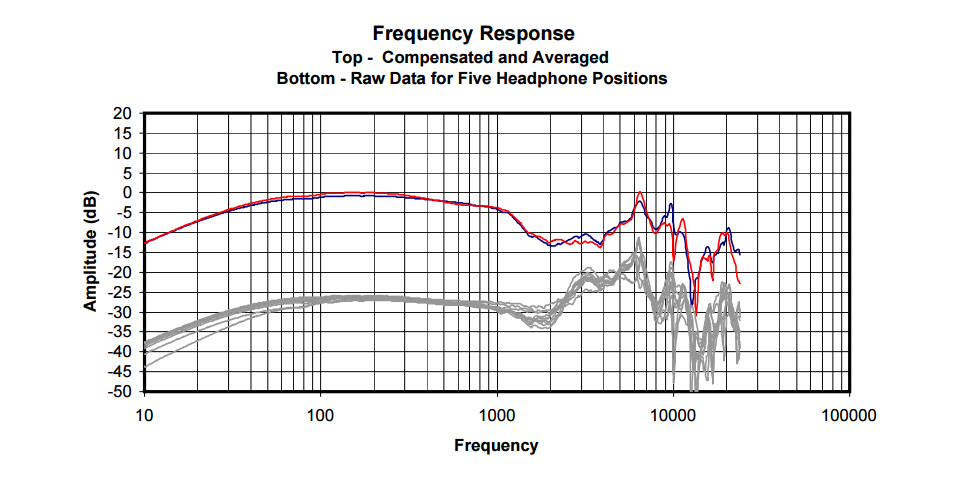

http://www.innerfidelity.com/images/SennheiserHD700.pdf

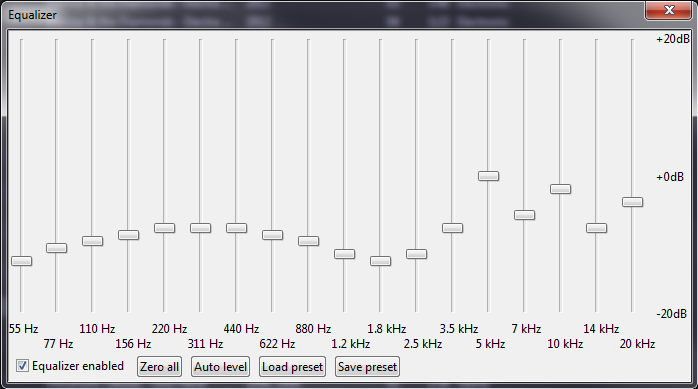

Using EQ and the SS-100, which is perceptibly the flattest headphone I own, I've tried to prepare myself for what I'm about to receive and approximated the FR of the HD700. I compensated for the SS-100's perceived FR, which rolls off progressively from 3kHz to about -6dB at 16kHz. This gave me a headache, quite quickly:



After getting "used" to that, I played around with the sliders a lot and determined a realistic target FR, something that sounds better while still being within the realm of possibility. Here's the target I came up with (again compensating for the SS-100's FR above 3kHz):

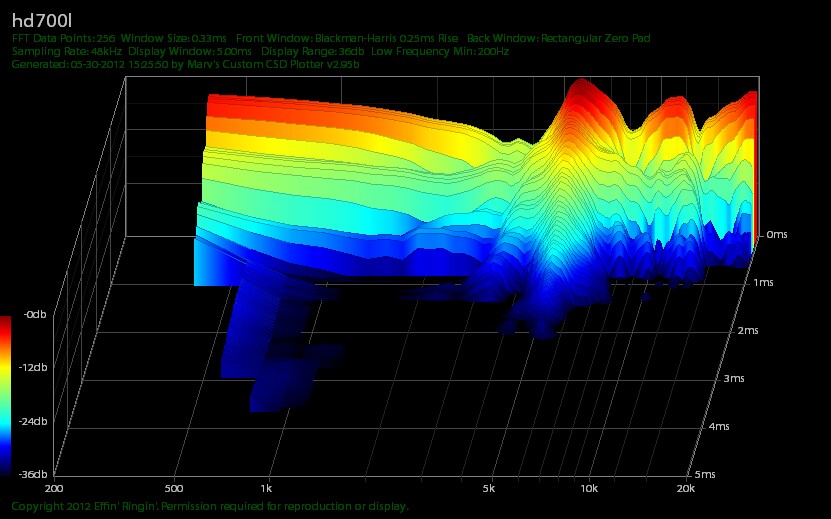

My suspicion is that the 6kHz peak is being accentuated by the ringing on marv's CSDs. Hopefully, this ringing is coming from the enclosure, and not the driver (which is notoriously much harder to fix). However, given the very clean distortion characteristics of the HD700 (above 200Hz), I don't suspect the driver to be the culprit here.

Now onto damping material selection...
Logged
This industry is really fucking broken

Anaxilus

  • Phallus Belligerantus Analmorticus
  • Pirate
  • **
  • Brownie Points: +65535/-65535
  • Offline Offline
  • Posts: 3493
  • TRS jacks must die
    • The Claw
Re: Tak bought an HD700, prepare the tar and feathers
« Reply #19 on: July 27, 2015, 09:03:58 PM »

Anax is interested as well??


Don't mind me. I once thought of getting a salvaged Honda Insight and sticking a Hayabusa V8 in it.
Logged
"If you do not change direction, you may end up where you are heading." - Lao Tzu

"The Claw is our master. The Claw chooses who will go or who will stay." - The LGM Community

"You're like a dull knife, just ain't cuttin'. Talking loud, saying nothing." - James Brown
Pages: 1 [2] 3 4 5
