RD's T50RP mod v0.5
« on: February 23, 2012, 11:28:51 PM »

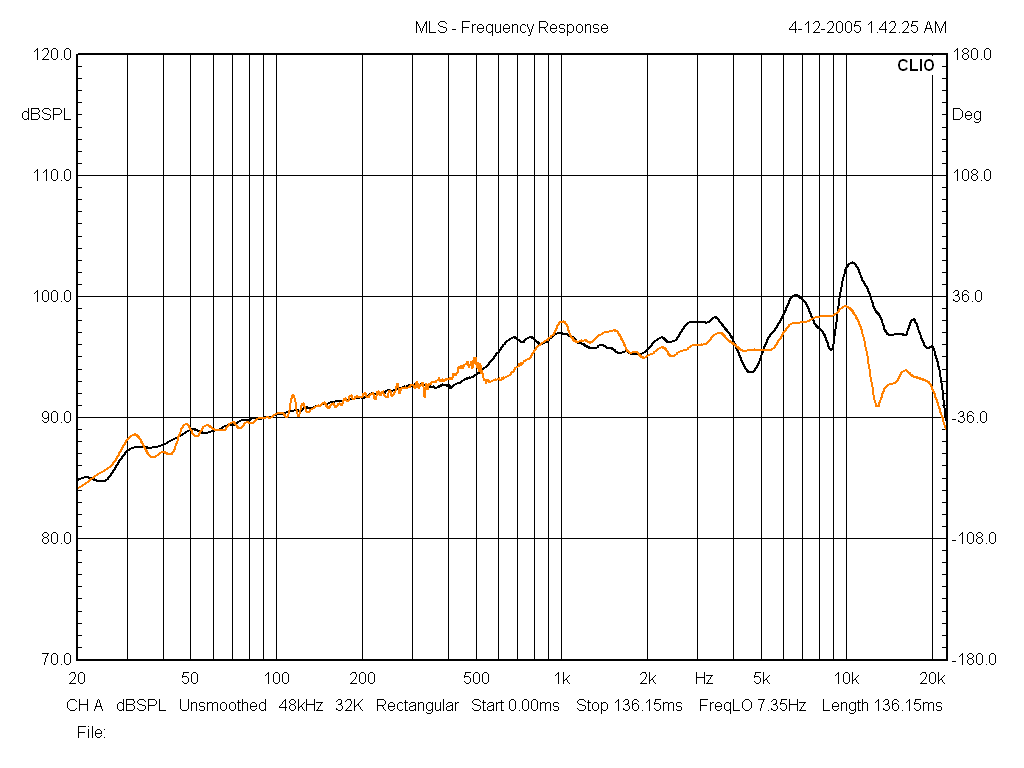

RD's T50RP mod v0.5 (in progress) compared to Paradox s/n #001

Uncompensated FR graph.


Uneven treble response is caused by removing the stock "tissue" behind the driver (and replacing it with something else.) Personally, I recommend leaving the driver alone. This is one of few tips I will ever offer as I already know too much. Upon hearing, I thought the dip at 4k was wider from 2-5k. The 10k peak was very evident.

Looks like someone found a good absorbing material.
« Last Edit: February 24, 2012, 04:34:36 AM by purrin »
Logged

LFF

  • Mastering Wizard & Restoration Guru
  • Mate
  • Pirate
  • ****
  • Brownie Points: +761/-0
  • Offline Offline
  • Posts: 1425
Re: RD's T50RP mod
« Reply #1 on: February 23, 2012, 11:42:27 PM »

 :o

That's a damn good job! Congrats to RD.

I bet most people would be unable to differentiate the two.

A tip of my hat to you, good sir!  8)

Logged
These statements are false.
I rule with an iron fist and ears of gold!
The preceding statements were true.

The way to a man's heart is through her stomach.

Questhate

  • Stops to get gas, buys some stax.
  • Mate
  • Pirate
  • ****
  • Brownie Points: +83/-1
  • Offline Offline
  • Posts: 916
  • Banned for putting ice cubes in fine Scotch
Re: RD's T50RP mod
« Reply #2 on: February 23, 2012, 11:52:56 PM »

Yep. I'd be ecstatic if mine looked that good. Hemholtz dildo FTW.

What do peaks sound like anyway?
Logged

rhythmdevils

  • Mate
  • Pirate
  • ****
  • Brownie Points: +131/-65535
  • Offline Offline
  • Posts: I am a geek!!
  • Team Cheap, Picky Basterds
    • www.my40dollarorhosarebetterthanyour1kflagship.com
Re: RD's T50RP mod
« Reply #3 on: February 24, 2012, 12:38:21 AM »

Thanks!

FYI they aren't finished I only sent them with Marv since he was here in person.  They still need a few tweaks.  :-)  But good to see that they are measuring in the ballpark!
« Last Edit: February 24, 2012, 12:41:20 AM by rhythmdevils »
Logged

RexAeterna

  • Gigolo of Gigolos
  • Mate
  • Pirate
  • ****
  • Brownie Points: +355/-1
  • Offline Offline
  • Posts: 1373
  • Friendship is magic
Re: RD's T50RP mod v0.5
« Reply #4 on: February 24, 2012, 12:48:41 AM »

awesome work there! looks like i have much to learn still.
Logged
''I'm a music lover. Not an audiophile.''

''The World is Study.''

''I have no special talent. I am only passionately curious.''

''Logic will get you from A to B. Imagination will take you everywhere.''

RexAeterna

  • Gigolo of Gigolos
  • Mate
  • Pirate
  • ****
  • Brownie Points: +355/-1
  • Offline Offline
  • Posts: 1373
  • Friendship is magic
Re: RD's T50RP mod v0.5
« Reply #5 on: February 24, 2012, 11:07:06 AM »

i'm curious. is beyond 14k a driver limitation? every mod i see no matter what is used seems to take pretty gentle dive after 10k. i know with most headphones that it's usually done on purpose to take a dive after 10k but i guess it can be driver limitations as well.
Logged
''I'm a music lover. Not an audiophile.''

''The World is Study.''

''I have no special talent. I am only passionately curious.''

''Logic will get you from A to B. Imagination will take you everywhere.''

LFF

  • Mastering Wizard & Restoration Guru
  • Mate
  • Pirate
  • ****
  • Brownie Points: +761/-0
  • Offline Offline
  • Posts: 1425
Re: RD's T50RP mod v0.5
« Reply #6 on: February 24, 2012, 03:46:53 PM »

I think it is a driver limitation.

All orthos seem to have this limitation. I'm sure there is a way to boost that range but do you really want to?
Logged
These statements are false.
I rule with an iron fist and ears of gold!
The preceding statements were true.

The way to a man's heart is through her stomach.

spoony

  • 5 years late on rickrolling
  • Able Bodied Sailor
  • Pirate
  • ***
  • Brownie Points: +13/-0
  • Offline Offline
  • Posts: 274
  • ex c61746961
Re: RD's T50RP mod v0.5
« Reply #7 on: February 24, 2012, 06:11:30 PM »

Amazing... So these are the workings of the magical craft foam?... So you guys managed to even up the bass response without removing the vent felt or sealing the vents completely?
Logged

rhythmdevils

  • Mate
  • Pirate
  • ****
  • Brownie Points: +131/-65535
  • Offline Offline
  • Posts: I am a geek!!
  • Team Cheap, Picky Basterds
    • www.my40dollarorhosarebetterthanyour1kflagship.com
Re: RD's T50RP mod v0.5
« Reply #8 on: February 24, 2012, 06:31:17 PM »

It's the workings of a number of things ;-)  The craft foam is great for resonances in the cup back, but it isn't enough.  I'll probably post my mod soonish, it's a unique mod to LFF's, we didn't share notes, but we do seem to share the same general goal and preferences.

LFF's are completely sealed and totally closed back, mine have the vent fully open (but with stock felt in place).  So sealing/not sealing isn't a necessity, it depends on how you're tuning them.  Closed has it's advantages for isolation, but the more open back an ortho is the bigger your soundstage will be in general.  Of course there's other things that effect that as well.
Logged

rhythmdevils

  • Mate
  • Pirate
  • ****
  • Brownie Points: +131/-65535
  • Offline Offline
  • Posts: I am a geek!!
  • Team Cheap, Picky Basterds
    • www.my40dollarorhosarebetterthanyour1kflagship.com
Re: RD's T50RP mod v0.5
« Reply #9 on: February 24, 2012, 07:45:44 PM »

The only thing to avoid with the T50rp is this kind of mentality:

Quote from: Head-fier
I'm eager to hear more about this but not willing to try it yet.
Logged
