Author Topic: Oppo PM-2  (Read 12046 times)

0 Members and 1 Guest are viewing this topic.

Colgin

  • Able Bodied Sailor
  • Pirate
  • ***
  • Brownie Points: +18/-2
  • Offline Offline
  • Posts: 138
Re: Oppo PM-2
« Reply #50 on: September 09, 2014, 03:08:50 AM »
Quote from: hans030390 on September 09, 2014, 03:05:45 AM
For anyone that might be interested, I posted my full, lengthy review of the PM-2 at HF finally: http://www.head-fi.org/products/oppo-pm-2/reviews/11555

The info itself isn't new...maybe a couple things here and there, such as the brief ZMFxVibro comparison and measurements (full review of that coming here soon). It's just more fleshed out and better compiled and organized than what I've posted so far.

Been patiently waiting for your review Hans. Going to head over to HF and read it now.

edit: just read the review Hans.  Very detailed and helpful. Thanks.
« Last Edit: September 09, 2014, 03:25:41 AM by Colgin »
Logged

ultrabike

  • Burritous Supremus (and Mexican Ewok)
  • Master
  • Pirate
  • *****
  • Brownie Points: +4226/-2
  • Offline Offline
  • Posts: 2384
  • I consider myself "normal"
Re: Oppo PM-2
« Reply #51 on: October 10, 2014, 04:20:05 PM »
Got the PM-2s. Not bad at all actually. Sort of closed sounding but IMO actually a little better than the PM-1s. They are close though.

So here are some measures of the PM-2s.

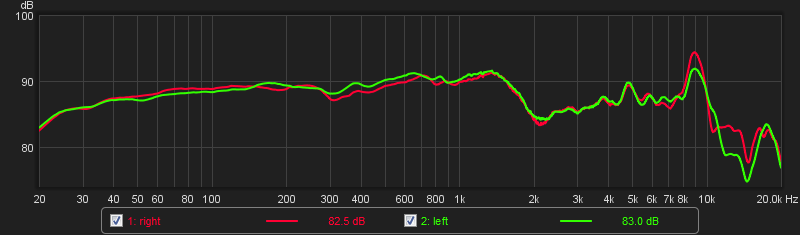

Frequency Response

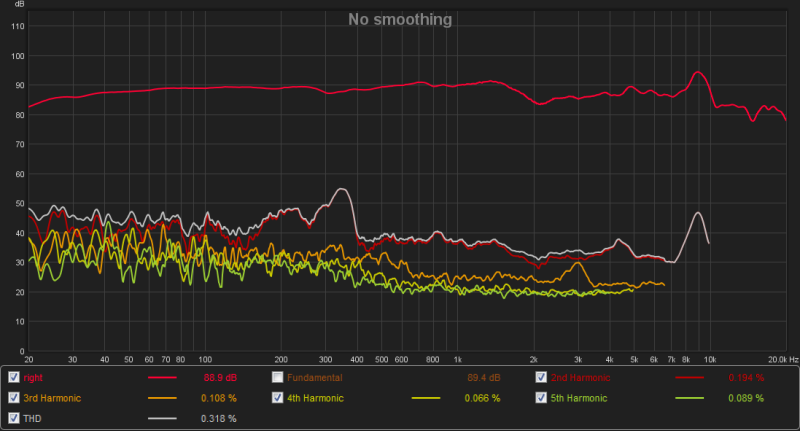

Distortion Right



Distortion Left

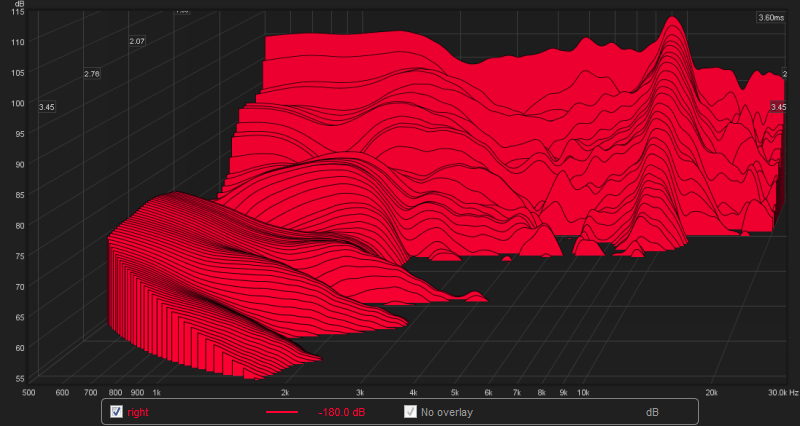

CSD Right

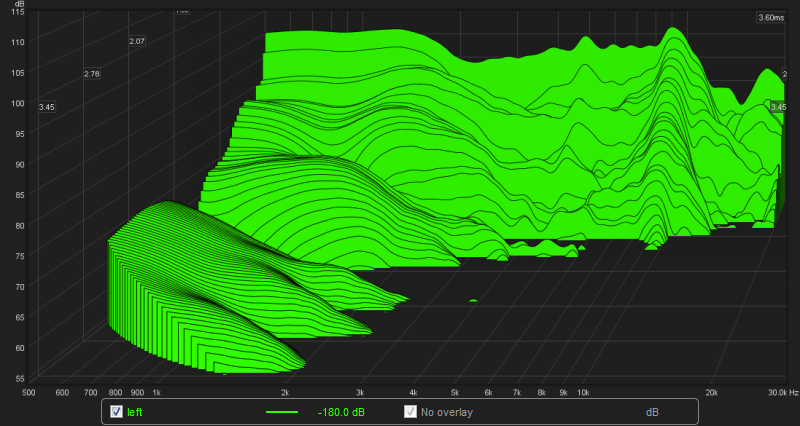

CSD Left

Logged

ultrabike

  • Burritous Supremus (and Mexican Ewok)
  • Master
  • Pirate
  • *****
  • Brownie Points: +4226/-2
  • Offline Offline
  • Posts: 2384
  • I consider myself "normal"
Re: Oppo PM-2
« Reply #52 on: October 10, 2014, 04:23:39 PM »

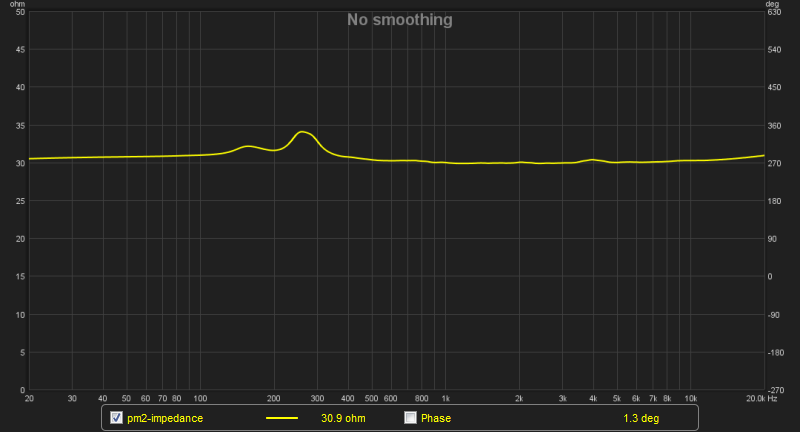

Impedance PM-2:

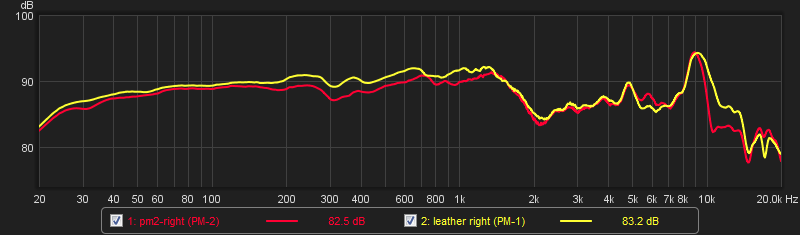

Comparo with Sachu's PM-1s (right driver)

PM-1 yellow, PM-2 red.



Distortion PM-1 (right)



Distortion PM-2 (right)



Perhaps a little more distortion on the PM-1, but seems to be around the same frequency area.
Logged

Thujone

  • Able Bodied Sailor
  • Pirate
  • ***
  • Brownie Points: +10/-1
  • Offline Offline
  • Posts: 261
Re: Oppo PM-2
« Reply #53 on: October 10, 2014, 04:42:19 PM »
Awesome, UB!  :)p7

Looks like the PM-2 is a little cleaner in the distortion department while the PM-1 is a little cleaner in the CSD department. Clearly you are spending a lot of money for the extra leather and metal accents.

Did you use the PM-1 pads for these measurements?
Logged

ultrabike

  • Burritous Supremus (and Mexican Ewok)
  • Master
  • Pirate
  • *****
  • Brownie Points: +4226/-2
  • Offline Offline
  • Posts: 2384
  • I consider myself "normal"
Re: Oppo PM-2
« Reply #54 on: October 10, 2014, 05:52:53 PM »
Dunno. They had some leathery pads with little holes on the sides... They are off to Colgin.
Logged

Anaxilus

  • Phallus Belligerantus Analmorticus
  • Pirate
  • **
  • Brownie Points: +65535/-65535
  • Offline Offline
  • Posts: 3493
  • TRS jacks must die
    • The Claw
Re: Oppo PM-2
« Reply #55 on: October 10, 2014, 06:04:44 PM »
They are the alternate pads.  Not sure if TP was involved or not.
Logged
"If you do not change direction, you may end up where you are heading." - Lao Tzu

"The Claw is our master. The Claw chooses who will go or who will stay." - The LGM Community

"You're like a dull knife, just ain't cuttin'. Talking loud, saying nothing." - James Brown

Colgin

  • Able Bodied Sailor
  • Pirate
  • ***
  • Brownie Points: +18/-2
  • Offline Offline
  • Posts: 138
Re: Oppo PM-2
« Reply #56 on: October 11, 2014, 12:29:18 AM »
Quote from: ultrabike on October 10, 2014, 05:52:53 PM
Dunno. They had some leathery pads with little holes on the sides... They are off to Colgin.

Thanks for sending along, Ultrabike. I should receive early next week. I don't have measuring equipment but will post my subjective impressions after I have had time to give them a good listen.
Logged

donunus

  • Cheapus Sexus
  • Mate
  • Pirate
  • ****
  • Brownie Points: +52/-3
  • Offline Offline
  • Posts: 875
Re: Oppo PM-2
« Reply #57 on: October 11, 2014, 12:35:13 AM »
Quote from: pervenets on August 30, 2014, 05:04:39 PM
I wander the same thing but who is going to buy PM1 now since PM2 is out, probably we will never find out  facepalm
and the pm3 is coming out too. hmm wonder how that will sound
Logged
Team Delicious and Juicy Sound

Hands

  • Pizza the Hutt
  • Mate
  • Pirate
  • ****
  • Brownie Points: +331/-8
  • Offline Offline
  • Posts: 1591
  • Master of Revelatory Bird Calls and Fine Art
Re: Oppo PM-2
« Reply #58 on: October 11, 2014, 01:58:36 AM »
UB, you sure you're getting a good seal on these (or maybe it's comp curve related)? I know the PM-1/2 aren't too dependent on seal, but they will have a bass roll-off like that if they have enough leakage.
Logged
The other master and I invite you to visit our digital museum of fine art and revelatory bird calls: https://www.facebook.com/SchrodsonkMuseum

ultrabike

  • Burritous Supremus (and Mexican Ewok)
  • Master
  • Pirate
  • *****
  • Brownie Points: +4226/-2
  • Offline Offline
  • Posts: 2384
  • I consider myself "normal"
Re: Oppo PM-2
« Reply #59 on: October 11, 2014, 03:47:45 AM »
I think this has come up before with a particular set of modified PM-1s.

I would interpret these measurements relative to other similarly measured cans. They are not IMO absolute. But yes, I think the HD600s might have a little more bass. These are not bass lite IMO though.

Logged
