Author Topic: Beats Studio FR and CSD  (Read 6072 times)

0 Members and 1 Guest are viewing this topic.

Marvey

  • The Man For His Time And Place
  • Master
  • Pirate
  • *****
  • Brownie Points: +555/-33
  • Offline Offline
  • Posts: 6698
  • Captain Plankton and MOT: Eddie Current
Re: Beats Studio FR and CSD
« Reply #10 on: November 21, 2013, 06:26:22 PM »
Bass is slightly muddy, but not horrible. The lower end "decay" is mostly a processing / visualization thing. UB's measurements weren't gated. I usually gate mine to 5ms.
Logged

ultrabike

  • Burritous Supremus (and Mexican Ewok)
  • Master
  • Pirate
  • *****
  • Brownie Points: +4226/-2
  • Offline Offline
  • Posts: 2384
  • I consider myself "normal"
Re: Beats Studio FR and CSD
« Reply #11 on: November 21, 2013, 06:47:35 PM »
Yes, the bass is not bad at all. For me it's usually easier to visualize that with distortion measurements. I will try to redo CSD with 5 ms gating, but most of the information I consider useful with CSDs (with the chosen parameters) is above 1 kHz.

Note that for the distortion measurements I used about 90 dBSPL with White Noise in this case. If I reference to 1 kHz then distortion is pretty high. IMO unfairly so. If I reference to 500 Hz then distortion is pretty low, perhaps also unfairly so.

Anyway, I did not feel like bass response was problematic or very thick with these cans.
« Last Edit: November 21, 2013, 07:01:18 PM by ultrabike »
Logged

Sforza

  • Able Bodied Sailor
  • Pirate
  • ***
  • Brownie Points: +12/-0
  • Offline Offline
  • Posts: 225
Re: Beats Studio FR and CSD
« Reply #12 on: November 22, 2013, 01:58:18 AM »
Story: I saw the measurements on here today, and borrowed a friend's pair of Beats because it implied that the Beats I have couldn't possibly be as bad as they sound. Now I know I have a fake pair :'( It was a gift from a relative.

Pirates outing other pirates!
Logged

Armaegis

  • Uphill, both ways
  • Able Bodied Sailor
  • Pirate
  • ***
  • Brownie Points: +76/-3
  • Offline Offline
  • Posts: 883
  • metallurgist, rocket scientist, swing dancer
Re: Beats Studio FR and CSD
« Reply #13 on: November 22, 2013, 08:46:34 AM »
The Beats Solo are an atrocity. The Studios get a big "meh" from me, and the ANC an even bigger blah. The Pros get a slightly better meh on sound quality, but the increase in price and the fact that I have a boat anchor on my head decrease it back to a regular meh.
Logged
Do you think there may be an acoustic leak from the jack hole? ~Tyll Hertsens

Not sure if I like stuffing one hole or both holes. Tending toward one hole since both holes seems kinda ghey ~Purrin

ultrabike

  • Burritous Supremus (and Mexican Ewok)
  • Master
  • Pirate
  • *****
  • Brownie Points: +4226/-2
  • Offline Offline
  • Posts: 2384
  • I consider myself "normal"
Re: Beats Studio FR and CSD
« Reply #14 on: November 23, 2013, 07:24:29 AM »
OK. I redid the measurements but setting the level to 90dB with Pink Noise.

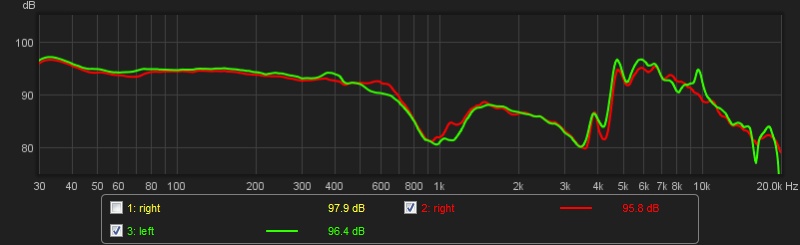

Frequency Response

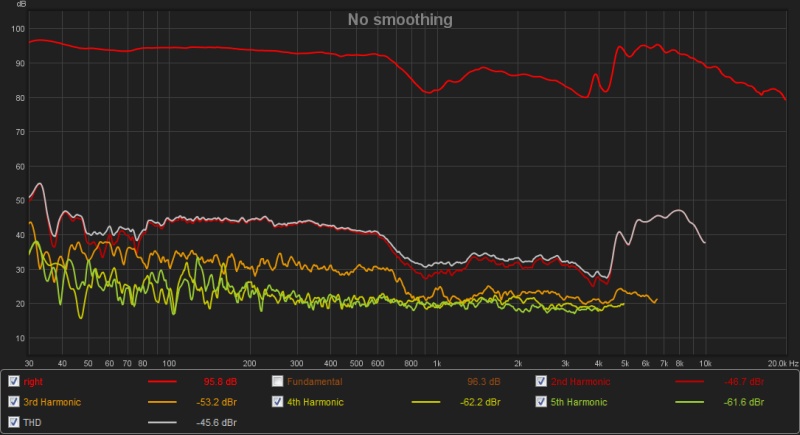

Distortion Right (level @ 90dB with Pink Noise)

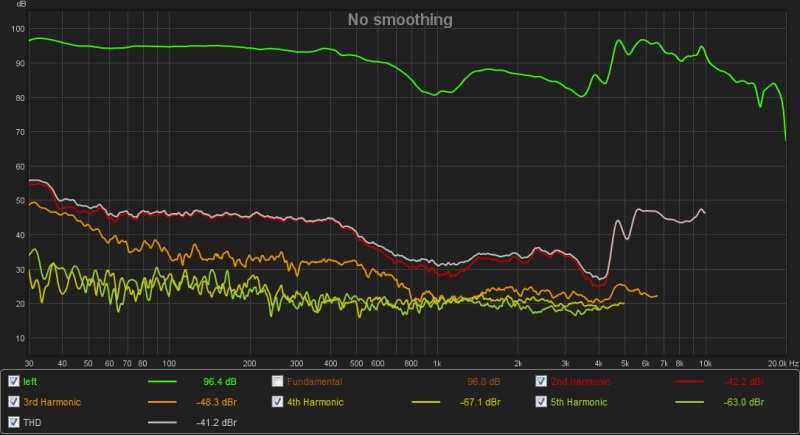

Distortion Left (level @ 90dB with Pink Noise)

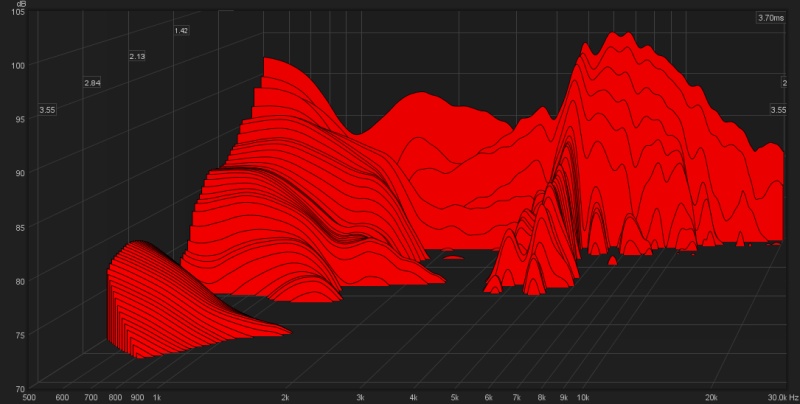

CSD Right

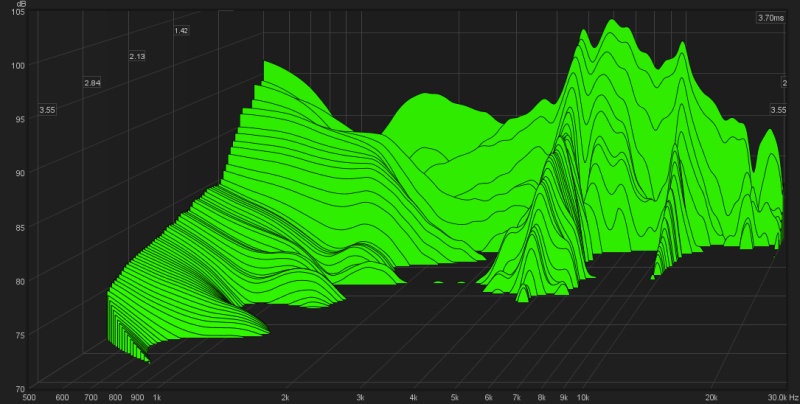

CSD Left

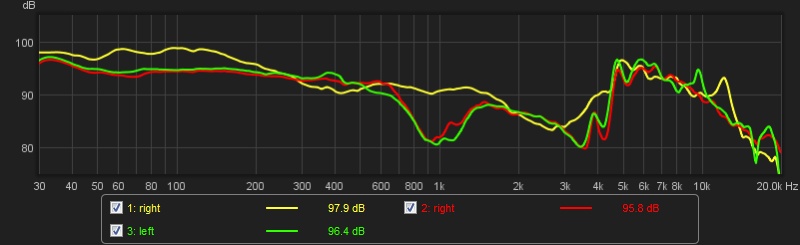

Comparo with NAD HP50 (HP50 90dB@1kHz and Beats Studio 90dB Pink Noise)
