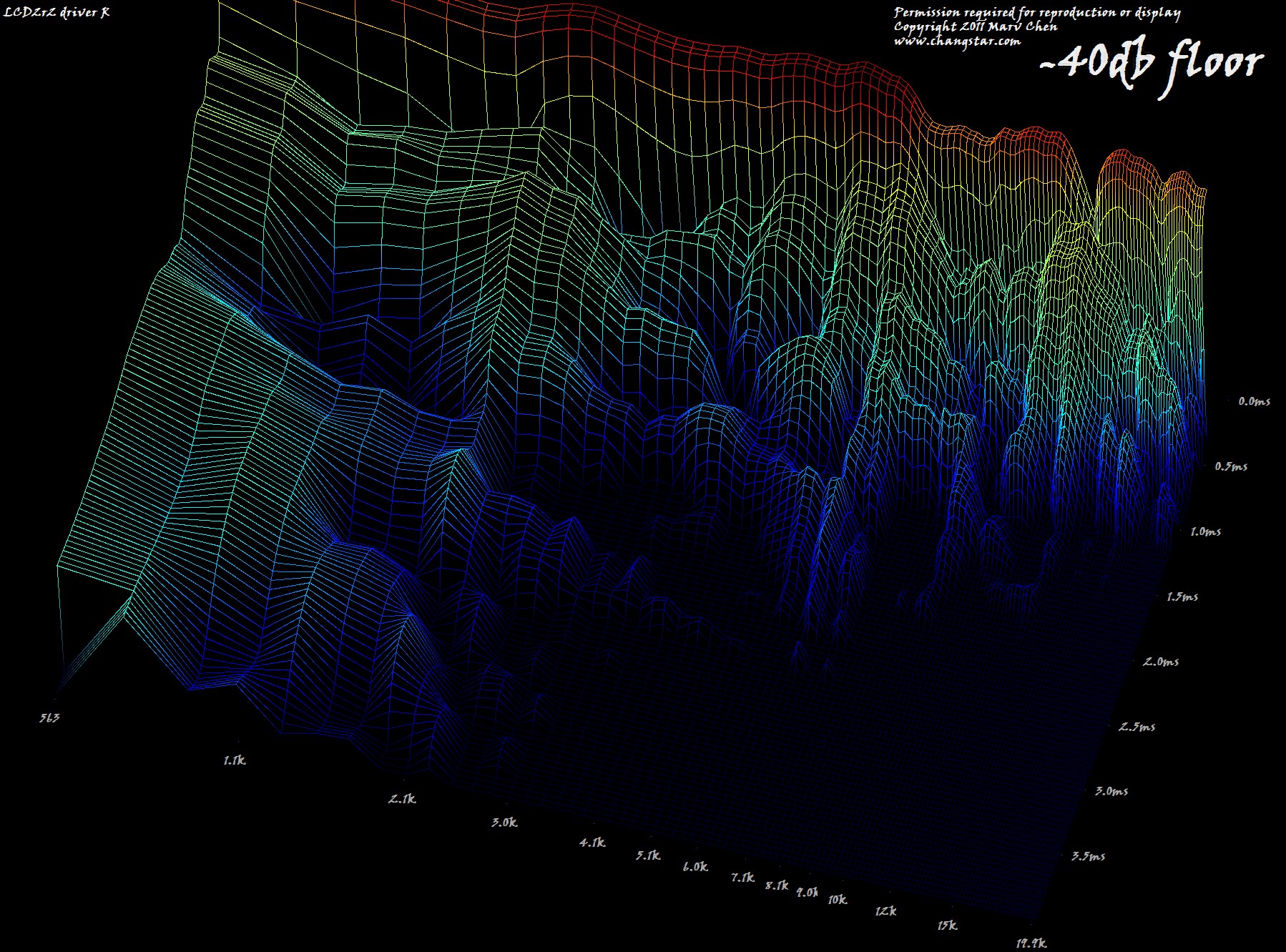

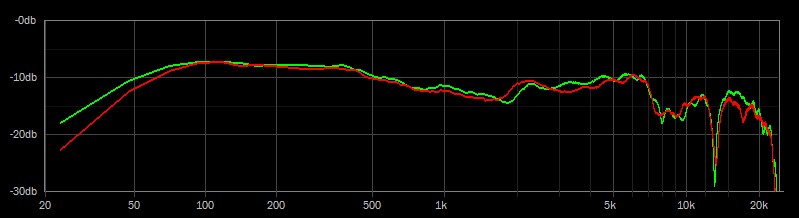

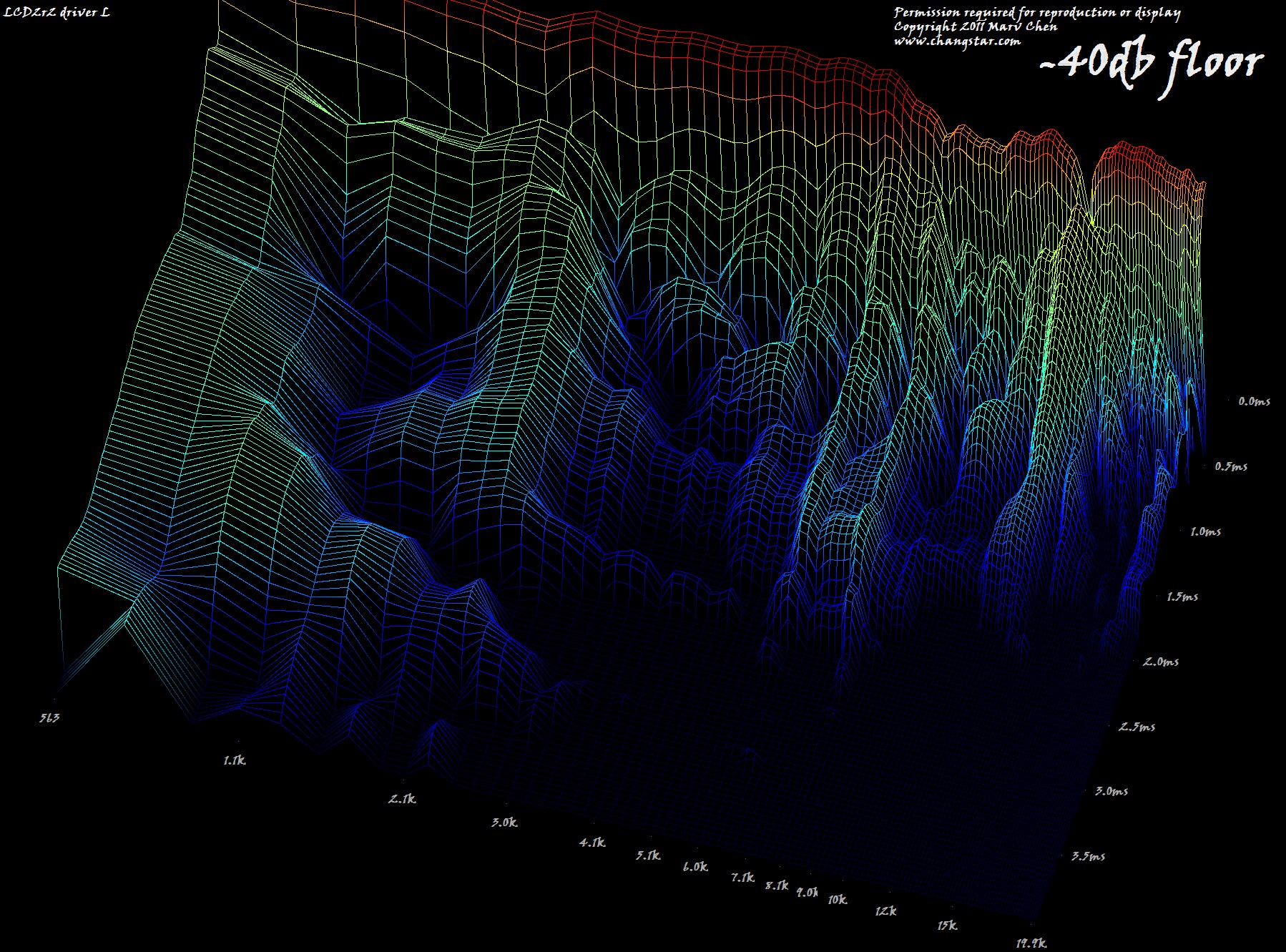

Audeze LCD-2 revision 2 raw driver measurements. Frequency response and CSDs at -40db floor.

The measurements were taken from the outer (back) side of the headphone cup with the metal cages removed. The felt damping behind the driver was left in place. The drivers actually appear to be well matched on this sample. Raw driver CSDs actually look to have less sharp ridges compared to CSDs with the enclosure and pads. See  http://www.changstar.com/index.php/topic,52.0.html for comparison (BTW - the left and right channels are reversed with this measurement set). It would appear that the pads and enclosures significantly contribute to measurement variability of these cans.
