Author Topic: STAX SR-002 measurements (DO NOT CLICK IF YOU DON'T WANT TO SEE THEM YET)  (Read 1819 times)

0 Members and 1 Guest are viewing this topic.

Marvey

  • The Man For His Time And Place
  • Master
  • Pirate
  • *****
  • Brownie Points: +555/-33
  • Offline Offline
  • Posts: 6698
  • Captain Plankton and MOT: Eddie Current
STAX SR-002 measurements (DO NOT CLICK IF YOU DON'T WANT TO SEE THEM YET)
« on: January 23, 2013, 07:11:06 PM »
STAX SR-002 measurements
.
.
.
SPOILERS BELOW - SCROLL DOWN
DOING THIS FOR SAKE OF PEEPS WHO DIDN'T WANT TO SEE THE MEASUREMENTS YET
.
.
.
.
.
.
.
.


.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.

.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.

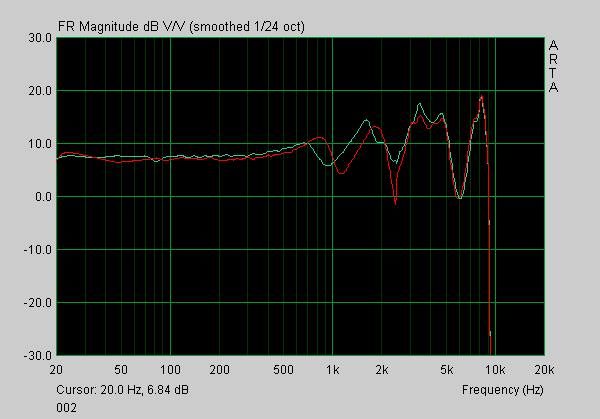

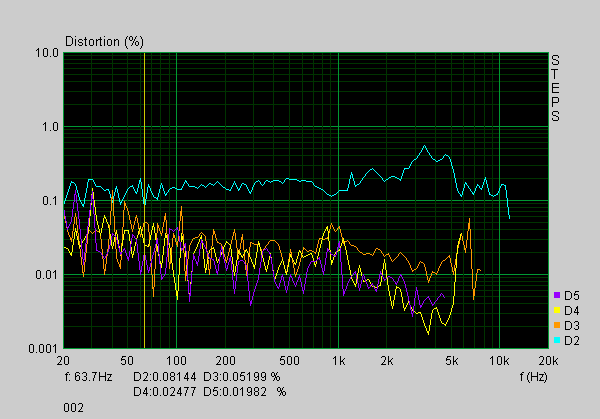

I hear the bump ~700Hz, but I don't think I hear the upper midrange or treble spikes at all. Maybe they were there, but the stats present these so differently. If anything, these are warming sounding with emphasis on mids. I also felt they lacked air. 2nd order distortion is mostly low. 3rd order is pretty good. 4th and 5th higher order is somewhat high (I measured again with adjusted microphone sensitivities to confirm).

The measurements do not reflect what I hear. I think the seal is too good with the coupler.
« Last Edit: January 23, 2013, 07:28:16 PM by purrin »
Logged

anetode

  • an objectivist trapped in a subjectivist's body
  • Mate
  • Pirate
  • ****
  • Brownie Points: +178/-7
  • Offline Offline
  • Posts: 1067
Re: STAX SR-002 measurements (DO NOT CLICK IF YOU DON'T WANT TO SEE THEM YET)
« Reply #1 on: January 23, 2013, 07:24:39 PM »
The response on these appears to be substantially different than on the old model - http://www.innerfidelity.com/images/StaxSR003SA1993.pdf. Their HD remains superb  :)p1
Logged
Love isn't always on time.

Anaxilus.

  • Dikus Beligerantis Analmorticus
  • Pirate
  • **
  • Brownie Points: +65535/-65535
  • Offline Offline
  • Posts: 577
Re: STAX SR-002 measurements (DO NOT CLICK IF YOU DON'T WANT TO SEE THEM YET)
« Reply #2 on: January 23, 2013, 08:23:43 PM »
I hear the spikes but only problematic if I turn it up really loud but they still have a softer edge to them compared to BA/DD drivers.  This is an overall Stax sig I think.  I do get a a greater sense of midbass than the graph indicates.  Too much warmth is still a function of perhaps too deep or tight of a fit.  You really want just the o-ring to nestle at the edge of your ear canal almost on the verge of feeling like they will fall out.  That will help open them up and add more air.
Logged
If you do not change direction, you may end up where you are heading - Lao Tzu

Marvey

  • The Man For His Time And Place
  • Master
  • Pirate
  • *****
  • Brownie Points: +555/-33
  • Offline Offline
  • Posts: 6698
  • Captain Plankton and MOT: Eddie Current
Re: STAX SR-002 measurements (DO NOT CLICK IF YOU DON'T WANT TO SEE THEM YET)
« Reply #3 on: January 23, 2013, 09:29:32 PM »
Yes, this is probably why not having the headband clamp down helped with reducing the excess warmth. It was not a seal issue for me. The only problem is without the headband, they tend to fall out. Not gonna both messing with it. It is what is is. Like how it shouldn't be my responsibility to have mess with a universal version of a custom to supposed make it sound more like the custom. If UE or even JH can do it, so can cough, cough, cough.
Logged
