Author Topic: Recommend a DIY amp using 6SN7  (Read 2260 times)

0 Members and 1 Guest are viewing this topic.

dBel84

  • Ortho Ninja
  • Mate
  • Pirate
  • ****
  • Brownie Points: +86/-1
  • Offline Offline
  • Posts: 341
Re: Recommend a DIY amp using 6SN7
« Reply #10 on: September 27, 2012, 10:03:52 PM »

That chassis was quite the epic - front and back panels were solid 15mm copper plate , I got them dead cheap on a surplus find but they would be insanely expensive to buy.


sorry about the up coming thread crap guru ;-)



Not so much steam punk but resourceful recycling

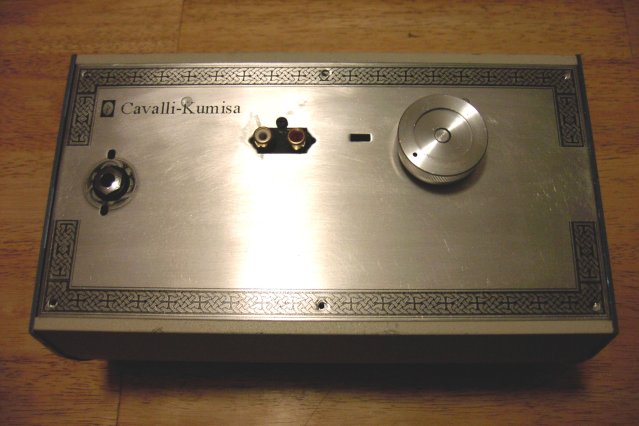

My Kumisa chassis - top plate with hand made transfer and brushed aluminium, chassis was a discarded telecom switch box

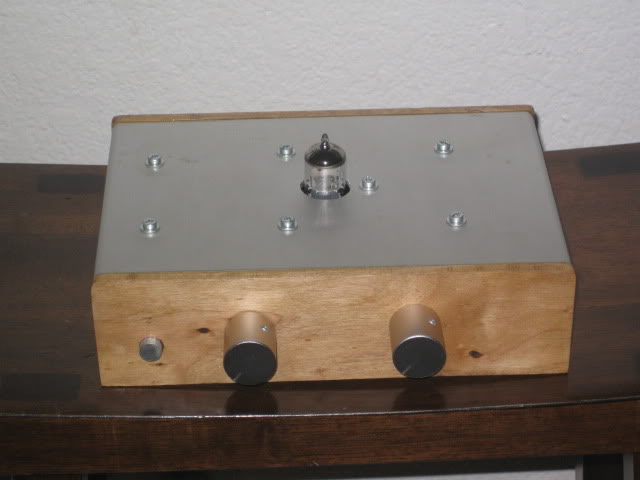

Unity gain "bootstrapped" tube buffer

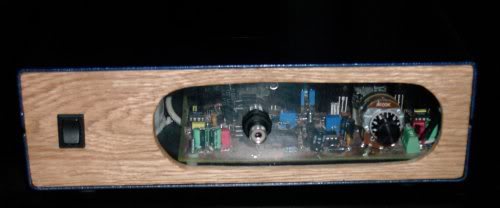

SOHA II - re-used a sturdy chassis from a control unit that I found in a surplus store - made the transfer for the top

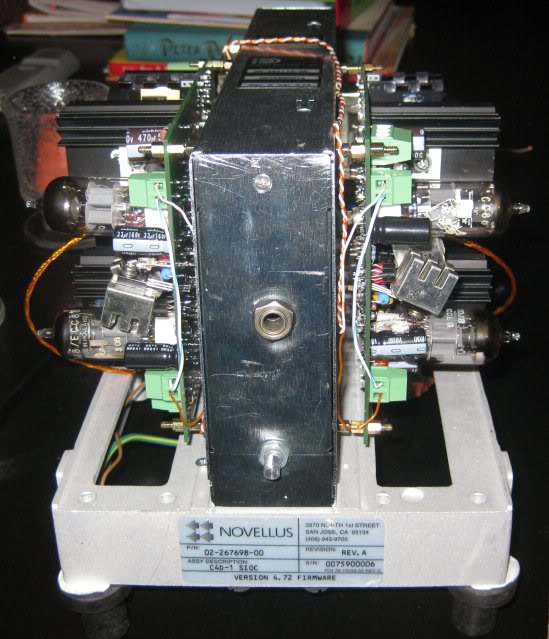

An early prototype - used a power supply base - original surplus had 3 units bolted next to one another.

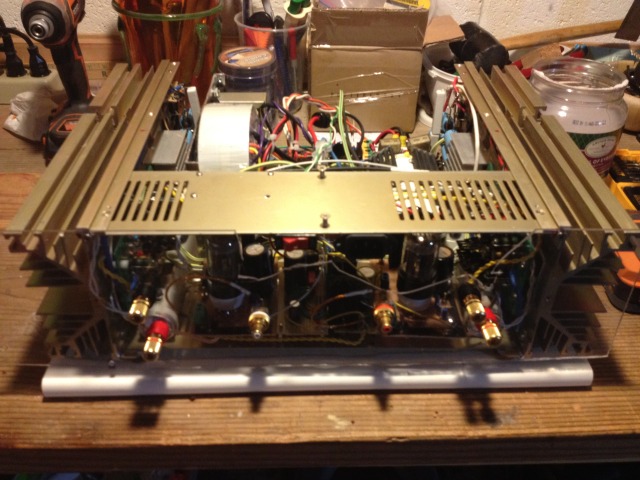

I am planning a full steam punk rework on this latest project - killer hybrid power amp , sounding glorious.



..dB
Logged

gurubhai

  • Ortho Ninja
  • Mate
  • Pirate
  • ****
  • Brownie Points: +104/-0
  • Offline Offline
  • Posts: 317
Re: Recommend a DIY amp using 6SN7
« Reply #11 on: September 28, 2012, 06:07:06 PM »

This is some truly inspiring stuff, Don. Guess its time for me to get off my lazy bum and do some building. :ship:

P.S. : Just wanted to post that pirate smiley, its awesome!  :D
Logged

jilldwr

  • Guest
Re: Recommend a DIY amp using 6SN7
« Reply #12 on: November 09, 2012, 10:12:14 PM »

Hmmm, a serious PASSION!  headbang
Logged
