Harmonic Distortion Measurements of BA Drivers
« on: August 04, 2012, 07:18:45 AM »

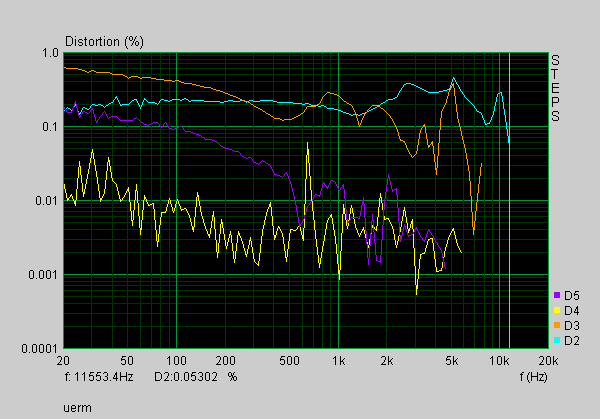

UERM

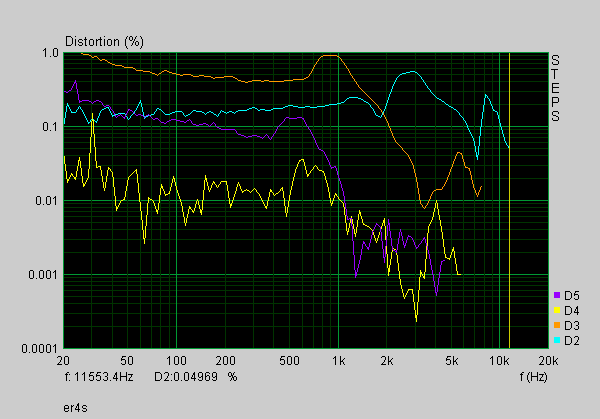

ER4S

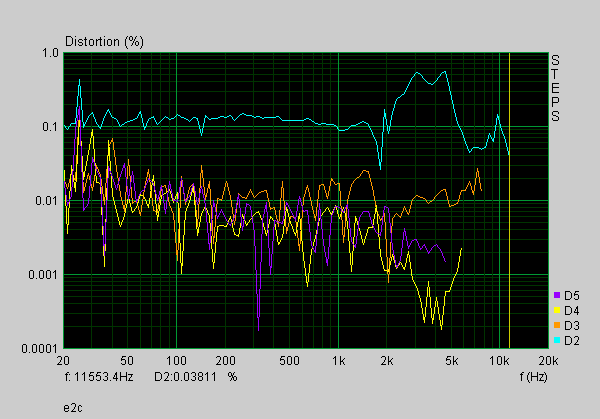

E2C

Interesting differences with distortion characteristics between driver types. Need more data. To be continued. Will post this on HF. Hopefully some retard won't barf on it.

http://www.head-fi.org/t/621303/differences-in-characteristics-of-driver-types-in-iems-some-interesting-measurements
« Last Edit: April 06, 2013, 09:04:19 PM by purrin »
Logged

Anaxilus.

  • Dikus Beligerantis Analmorticus
  • Pirate
  • **
  • Brownie Points: +65535/-65535
  • Offline Offline
  • Posts: 577

I've been wondering something for sometime that seems to concern measurements like HD, impulse response and square waves.  People seem to judge them in absolute terms but to my ears, if I tried to imagine correlating my experience to visualized data, it seems to me that the overall behavior is just as significant.  In other words, even though something appears to measure better absolutely, it may exhibit sporadic or odd/unpredictable behavior even if it performs better below a noise floor or within a specified time domain.


I'll bring over my IEM collection next week to keep you busy.
Logged
If you do not change direction, you may end up where you are heading - Lao Tzu

MuppetFace

  • Miss Anna Logg
  • Mate
  • Pirate
  • ****
  • Brownie Points: +119/-6
  • Offline Offline
  • Posts: 1371
  • First you get a swimming pool full of liquor...

Very nice work, purrin.  :)p5
Logged
My blog on head-fi: http://www.head-fi.org/f/7879/muppetface
I mostly talk about music there. Weird.

Marvey

  • The Man For His Time And Place
  • Master
  • Pirate
  • *****
  • Brownie Points: +555/-33
  • Offline Offline
  • Posts: 6698
  • Captain Plankton and MOT: Eddie Current

3rd, 5th order (odd) harmonic distortion


This tells me the BA drivers produce waves a little bit more square. Maybe partially accounts for how they sound, a little bit faster with artificially higher slope rises.
Logged

frenchbat

  • Batshit Frenchy
  • Able Bodied Sailor
  • Pirate
  • ***
  • Brownie Points: +22/-0
  • Offline Offline
  • Posts: 255

What's the amplifier you've used for the test ? I don't see any obvious variation due to the cross-over in the UERM's graph, and I'm wondering what kind of influence there could be.
Logged

electropop

  • Says he can live with shit on his testicles.
  • Able Bodied Sailor
  • Pirate
  • ***
  • Brownie Points: +10/-6
  • Offline Offline
  • Posts: 170

Just taught myself how to read the graph. Heh, so simple. Still can't fully correlate with other measurement data, such as square waves etc.

Very nice to see these though. Relatively high odd harmonic distortion. You mentioned that it in your experience results in atonality (pitches of notes less distinguished?). Do you feel that's the case with these IEM's?

Also, to teach a newb, how much of a difference is between 0,1% and 1% in dB?
Logged

Anaxilus.

  • Dikus Beligerantis Analmorticus
  • Pirate
  • **
  • Brownie Points: +65535/-65535
  • Offline Offline
  • Posts: 577

What's the amplifier you've used for the test ?


You'd laugh if we told you.  :)p17
Logged
If you do not change direction, you may end up where you are heading - Lao Tzu

Solderdude

  • Grab the dScope Kowalski!
  • Able Bodied Sailor
  • Pirate
  • ***
  • Brownie Points: +206/-4
  • Offline Offline
  • Posts: 907
  • No can do skipper, the dScope was terminated
    • DIY-Audio-Heaven

Also, to teach a newb, how much of a difference is between 0,1% and 1% in dB?

20dB

10dB is considered to sound twice as loud, 20dB = 4 times as loud
Logged
Use your ears to enjoy music, not as an analyser.

Anaxilus.

  • Dikus Beligerantis Analmorticus
  • Pirate
  • **
  • Brownie Points: +65535/-65535
  • Offline Offline
  • Posts: 577
Re: Harmonic Distortion Measurements of BA Drivers
« Reply #8 on: April 08, 2013, 07:42:27 AM »

Also, don't just think of distortion impacting music simply as a noise, crackle or his you just pick out and say 'Aha!'.  Distortion can also contribute to an odd sense of discontinuity over a respective range in FR.  The HE400 is a classic example of this.  Many people won't notice the distortion in the mids, but if you know what to listen for, some vocals might sound oddly warbled depending on the track and particular product variant.
Logged
If you do not change direction, you may end up where you are heading - Lao Tzu

kiteki

  • Guest
Re: Harmonic Distortion Measurements of BA Drivers
« Reply #9 on: August 13, 2013, 12:58:18 AM »


Is the effect of harmonic distortion which is impactful on sine-waves actually visible in square-waves?  It seems to me like square-waves are so convoluted / directly paralleled to FR - which varies wildly in transducers - that actually seeing sine-wave differences in square-wave response is impossible since the universal shape of the square-wave is determined explicitly by the FR, and thus the square-wave response in transducers is unrelated to sine-wave response, which is only 'visible' in harmonic distortion measurements such as these if anywhere, is that actually the case?
« Last Edit: August 13, 2013, 01:15:46 AM by kiteki »
Logged
