Author Topic: Fischer Audio DBA-02 mk1 Measurements  (Read 2941 times)

0 Members and 1 Guest are viewing this topic.

Marvey

  • The Man For His Time And Place
  • Master
  • Pirate
  • *****
  • Brownie Points: +555/-33
  • Offline Offline
  • Posts: 6698
  • Captain Plankton and MOT: Eddie Current
Fischer Audio DBA-02 mk1 Measurements
« on: July 11, 2012, 11:58:12 PM »

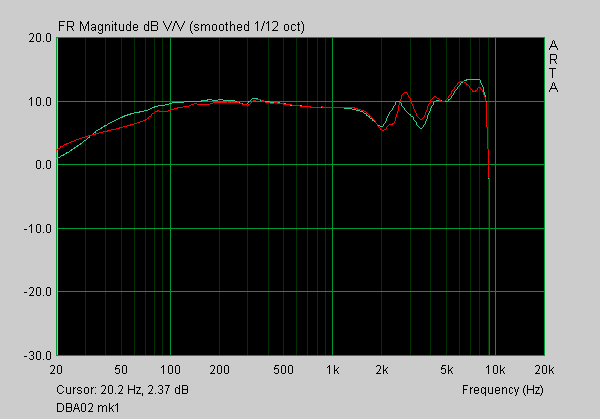

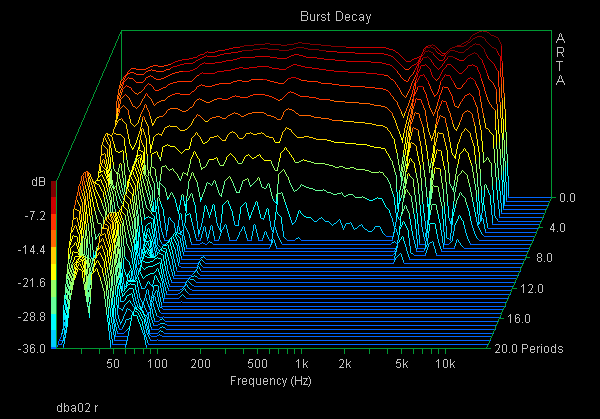

Fischer Audio DBA-02 mk1 Measurements

(right channel was NOT intentionally reduced 1db per some older measurements. Cut-off at 9kHz intentional. Read IMPORTANT NOTES.)

These sound a little bit bright to me, but still very tolerable. The mk1 is more rolled off in the bass than the mk2.

« Last Edit: November 16, 2012, 04:37:29 AM by purrin »
Logged

LFF

  • Mastering Wizard & Restoration Guru
  • Mate
  • Pirate
  • ****
  • Brownie Points: +761/-0
  • Offline Offline
  • Posts: 1425
Re: Fischer Audio DBA-02 mk1 Measurements
« Reply #1 on: July 12, 2012, 12:11:13 AM »

Very interesting. I always felt the MK1 had better quality bass than the MK2.
Logged
These statements are false.
I rule with an iron fist and ears of gold!
The preceding statements were true.

The way to a man's heart is through her stomach.

Anaxilus.

  • Dikus Beligerantis Analmorticus
  • Pirate
  • **
  • Brownie Points: +65535/-65535
  • Offline Offline
  • Posts: 577
Re: Fischer Audio DBA-02 mk1 Measurements
« Reply #2 on: July 13, 2012, 03:30:31 PM »

Very interesting. I always felt the MK1 had better quality bass than the MK2.


It does.  We just have bigger ear canals than Marv for the requisite insertion depth.  It does have roll off but the mk2 might be less rolled due to the midbass elevation?  The bass quality is inferior for sure on the mk2.  Not too dissimilar to how my ears respond to the HE500 tbh.
Logged
If you do not change direction, you may end up where you are heading - Lao Tzu

dogears

  • Able Bodied Sailor
  • Powder Monkey
  • ***
  • Brownie Points: +3/-0
  • Offline Offline
  • Posts: 38
Re: Fischer Audio DBA-02 mk1 Measurements
« Reply #3 on: April 16, 2013, 06:25:58 AM »

Hiya guys :D
I rediscovered this wonderful IEM with my friend's small double flange tips from his Klipsch X1. The bass is deeper than my Ortofon E-Q5 <- will try also with a double flange by Meelec soon.
Logged

Drakkard

  • Powder Monkey
  • *
  • Brownie Points: +17/-4
  • Offline Offline
  • Posts: 96
  • Fischer Audio guy
Re: Fischer Audio DBA-02 mk1 Measurements
« Reply #4 on: September 04, 2013, 09:17:55 AM »

Interesting observations :) From my point of view, choosing the right tips is much more important than bass difference between 1 and 2. The housing is different, and so, same eartips will make different  effect with mk1 and mk2.
Also, from technical standpoint, if anyone is curious, mk1 and 2 is absolutely the same. Only difference is slightly altered nozzle and cable.
Logged

Anaxilus.

  • Dikus Beligerantis Analmorticus
  • Pirate
  • **
  • Brownie Points: +65535/-65535
  • Offline Offline
  • Posts: 577
Re: Fischer Audio DBA-02 mk1 Measurements
« Reply #5 on: September 04, 2013, 05:00:46 PM »

Interesting observations :) From my point of view, choosing the right tips is much more important than bass difference between 1 and 2. The housing is different, and so, same eartips will make different  effect with mk1 and mk2.
Also, from technical standpoint, if anyone is curious, mk1 and 2 is absolutely the same. Only difference is slightly altered nozzle and cable.

Does the nozzle use a different filter?  The mk2 definitely sounds less clear and more warm on the bottom end even using the same tips.  The difference certainly sounds like a different filter.  What else is going on w/ the nozzle?

Btw, any thoughts about making a higher end DBA/B2?  More bass extension would be nice.  I'd favor another two driver or four driver.  Three drivers tend to sound noticeably incoherent to me, every single one.

Ever thought of making a dynamic using the GR07 housing?  Love that design.
Logged
If you do not change direction, you may end up where you are heading - Lao Tzu

Drakkard

  • Powder Monkey
  • *
  • Brownie Points: +17/-4
  • Offline Offline
  • Posts: 96
  • Fischer Audio guy
Re: Fischer Audio DBA-02 mk1 Measurements
« Reply #6 on: September 04, 2013, 05:45:48 PM »

Does the nozzle use a different filter?
No. You know, I was working on finishing the mk2 production, and I did not want to touch the thing that is working good already. And so the filter is definitely the same as on last DBA-02 mk1 bunch. I am not sure about the first bunch of dba, as I was not working on FA when it was released, but last bunch was the same, and I compared them. Yea, mk2 have slightly less brightness, and bass is acting somewhat differently. It is because the nozzle have different geometry (length and angle). Also, I would not be surprised, if soft-touch alters some plastic parameters, like density and resonance point.
Btw, any thoughts about making a higher end DBA/B2?  More bass extension would be nice.  I'd favor another two driver or four driver.  Three drivers tend to sound noticeably incoherent to me, every single one.
TBA-04 is soon to be released... At last. It is not an improved DBA-02 however, and is totally different. Mid-centric I'd say. It will be a short run, we have some much more promising designs.
Improved DBA is one of them. But, problem is, we do not want to give this designs to china factories for several reasons.. So it all comes if we able to settle a local production. Which is terribly painful in Russia...
Ever thought of making a dynamic using the GR07 housing?  Love that design.
Yea, I find it pretty cool too. But no, it is doubtful we will make something like it in near future. Such housing is simply to expensive and difficult to control for us, also such design have questionable effect on sound quality. And benefits are.. not that vital.
« Last Edit: September 04, 2013, 05:53:31 PM by Drakkard »
Logged

Anaxilus.

  • Dikus Beligerantis Analmorticus
  • Pirate
  • **
  • Brownie Points: +65535/-65535
  • Offline Offline
  • Posts: 577
Re: Fischer Audio DBA-02 mk1 Measurements
« Reply #7 on: September 04, 2013, 06:14:16 PM »

Thanks for the input!
