Author Topic: NAD RP18 (Kapton version) Measurements  (Read 7726 times)

0 Members and 1 Guest are viewing this topic.

MatsGyver

  • Guest
Re: NAD RP18 (Kapton version) Measurements
« Reply #30 on: March 08, 2014, 08:50:36 PM »

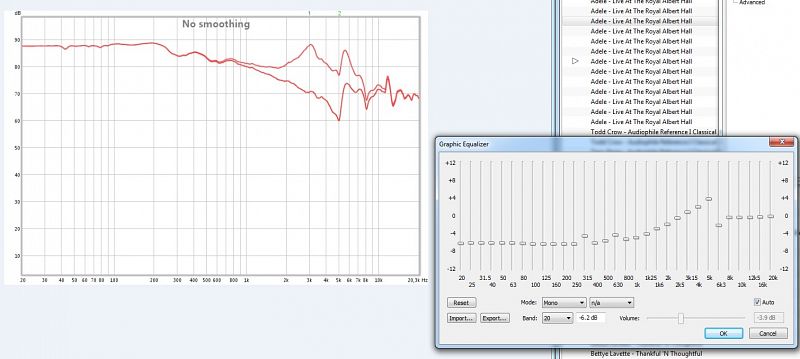

Edit. Improved my rig With cowskin leather instead of felt as cover and added the New measurment:

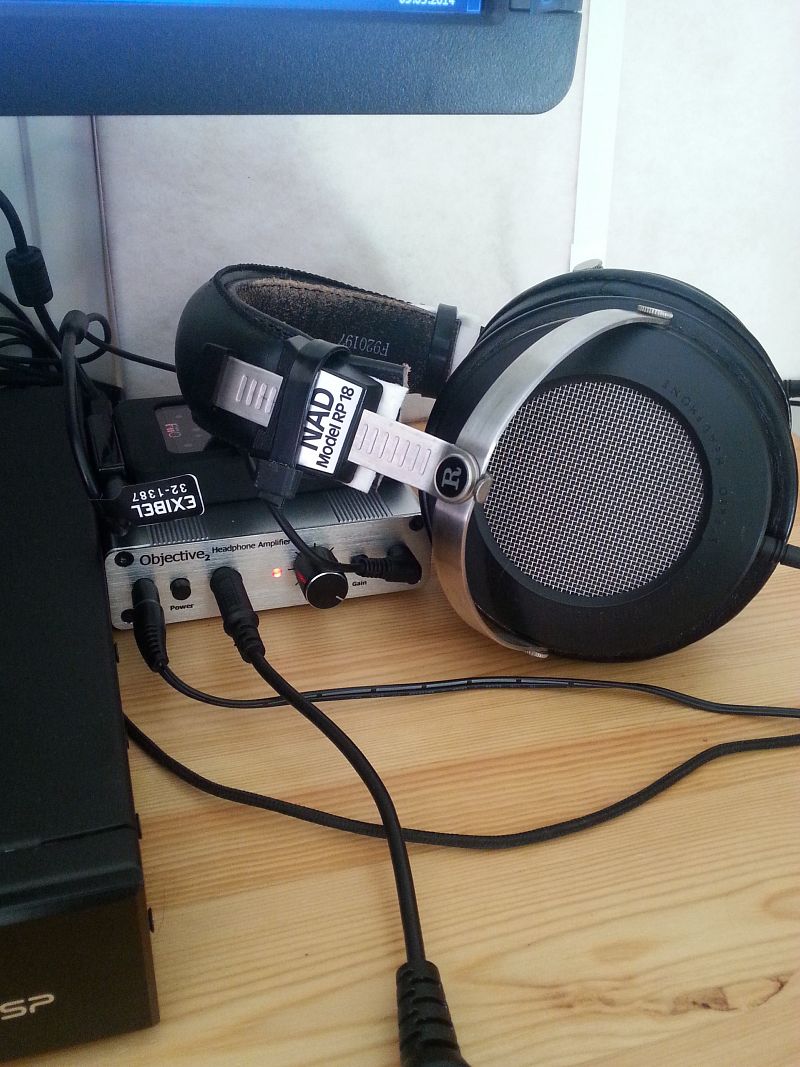

Sold my LCD-2`s r.1 and kept these instead. Never regretted it. Basically the same headphones if you ask me but the Audeze had a higher sales prize and a tizzy treble. With some EQ the Nad is awsome  :)p1

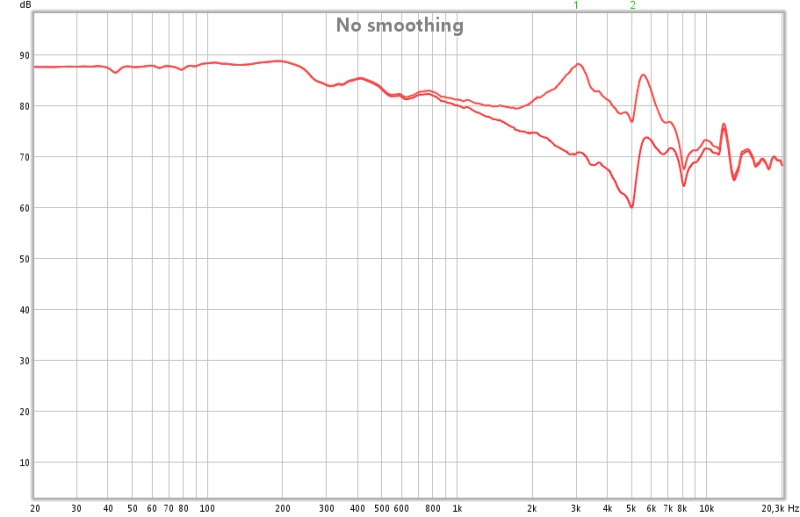

Upper is With added "HRTF" values. 3000hz, 15dB Gain 25 BW/60 and 5000hz 13dB Gain 20 BW/60. The lower is the raw measurement.
« Last Edit: March 09, 2014, 04:07:53 PM by MatsGyver »
Logged

Solderdude

  • Grab the dScope Kowalski!
  • Able Bodied Sailor
  • Pirate
  • ***
  • Brownie Points: +206/-4
  • Offline Offline
  • Posts: 907
  • No can do skipper, the dScope was terminated
    • DIY-Audio-Heaven
Re: NAD RP18 (Kapton version) Measurements
« Reply #31 on: July 05, 2014, 08:38:56 PM »

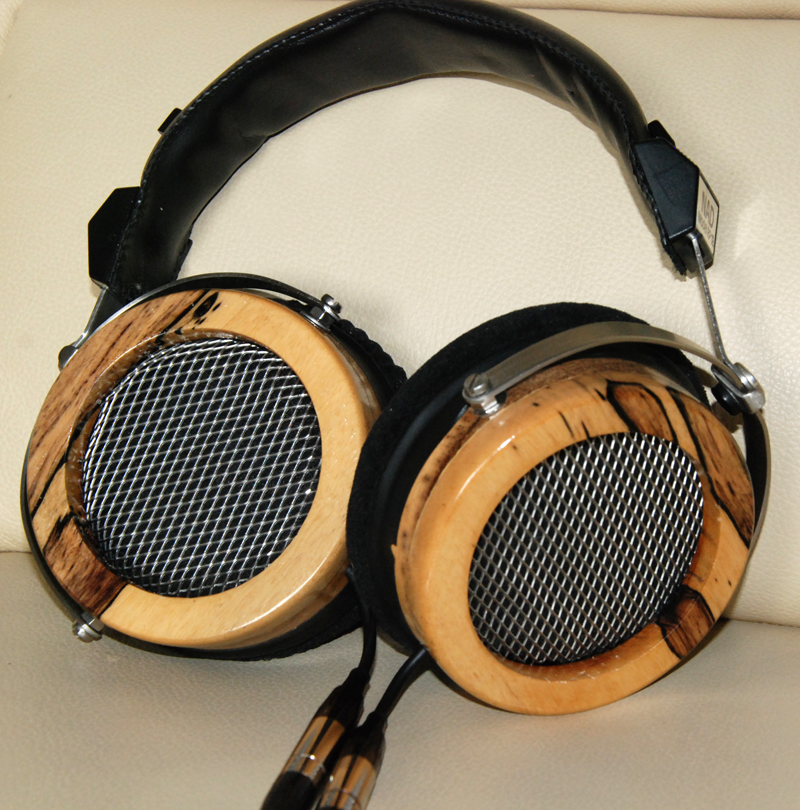

Stratocaster send his 'woodified' NAD RP18-Kapton in for measurements (including some other headphones)

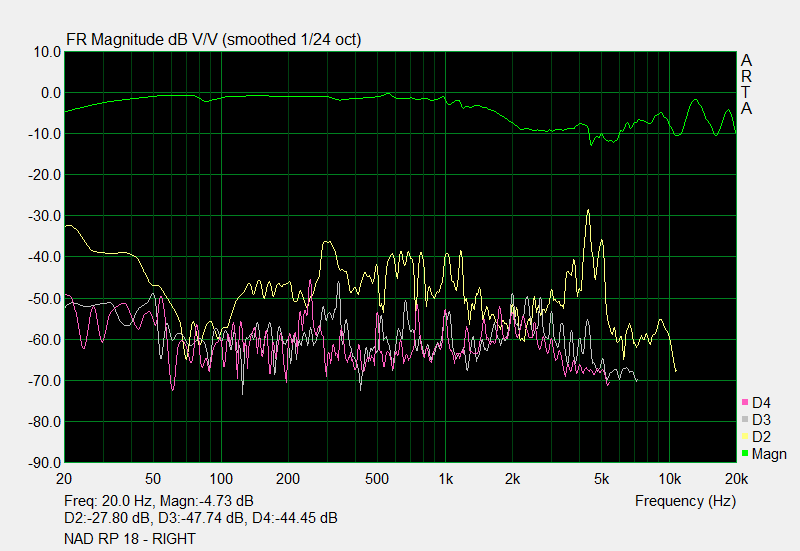

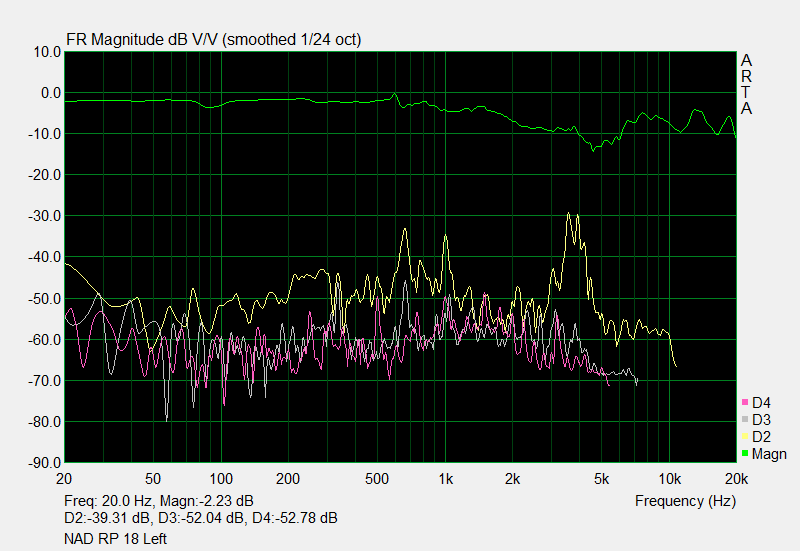

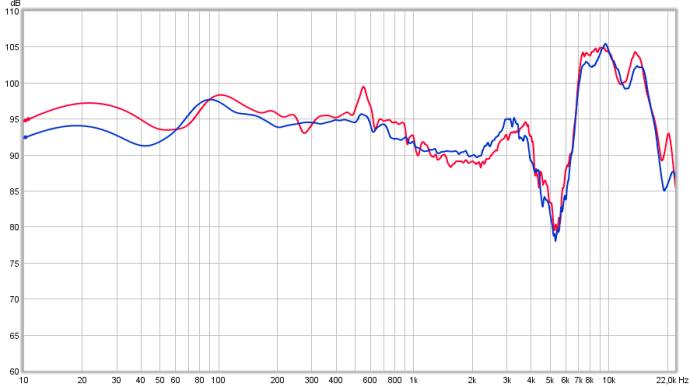

This is how it measures:

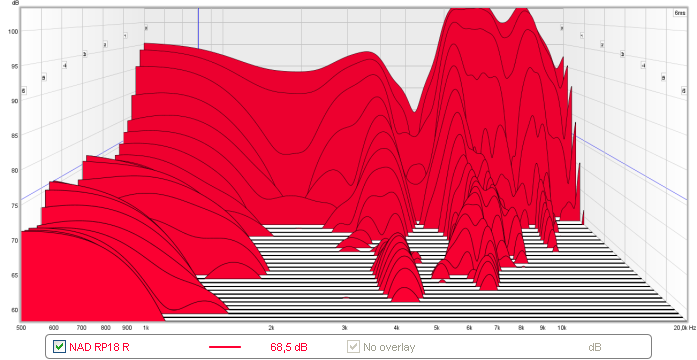

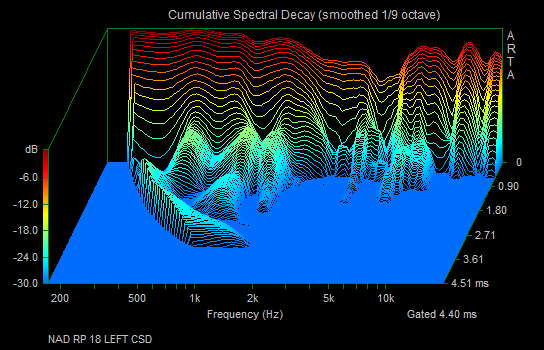

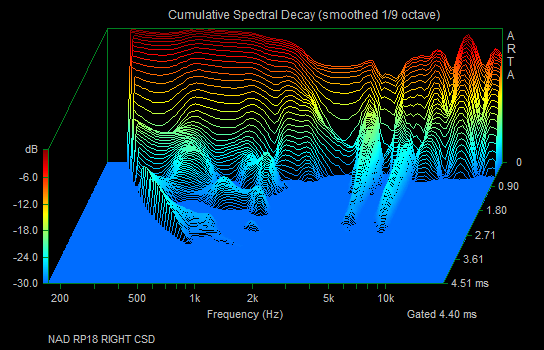

and CSD (right channel only)



Tonally balanced, the midrange seems slightly ‘better’ than T50RP-Alpha, a bit more clarity.
Bass on this one is also somewhat ‘clippish’ but seems slightly better than that of T50RP-Alpha.
The cymbals are over-accentuated a bit, making it sound highly detailed.
No sibilance or harsh sound with the better recordings. A bit in-between the lusher T50RP-Alpha and the more direct DT250 treble.
Not as smooth/clean as T50RP though but certainly not rough sounding.
Mids are its strongest points. A very clean and pleasant sound leaning toward ‘cuppy/hollow’ sound in some recordings on direct comparison with a reference headphone.
Very open and not overly dynamic nor compressed sounding, just ‘right’ in the mids tonally albeit leaning towards some edginess with some recordings.
The Alpha padded T50RP is more bassy (warmer) and slightly smoother up top but the NAD sounds a bit more ‘detailed’ and ‘fresher’ be it somewhat ‘rougher’.

Frequency range right up to 4kHz is quite good. The dip at 5kHz and treble peak is less desirable and is flanked by ringing.

Logged
Use your ears to enjoy music, not as an analyser.

Deep Funk

  • Sure is fond of ellipses...
  • Able Bodied Sailor
  • Pirate
  • ***
  • Brownie Points: +111/-3
  • Offline Offline
  • Posts: 2344
  • Born in 1988, eclectic 90-ties!
    • Radjahs2cents
Re: NAD RP18 (Kapton version) Measurements
« Reply #32 on: July 05, 2014, 11:22:38 PM »

At lower to medium listening levels that headphone looks like a great way to enjoy your music. The sound signature is a matter of personal taste...
Logged
Few things keep me sane: my loved ones, my music and my hobbies. Few is almost an understatement here...

stratocaster

  • Able Bodied Sailor
  • Pirate
  • ***
  • Brownie Points: +64/-0
  • Offline Offline
  • Posts: 200
Re: NAD RP18 (Kapton version) Measurements
« Reply #33 on: August 11, 2014, 02:15:58 PM »

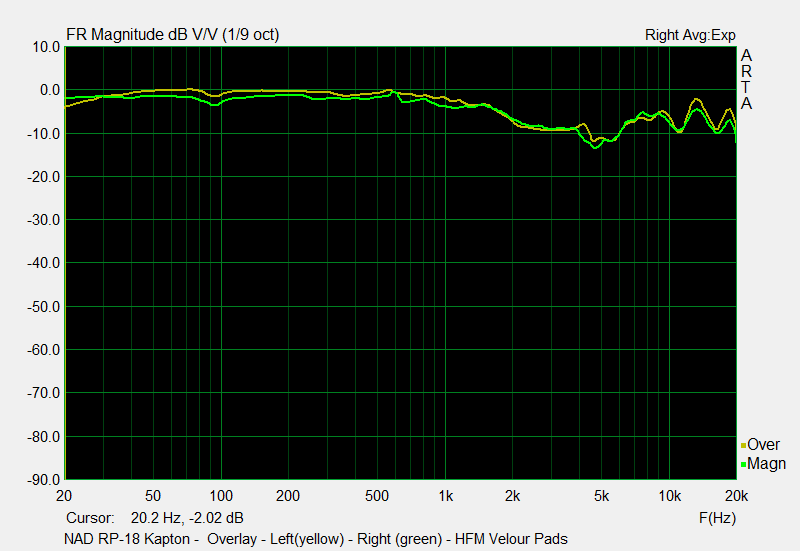

NAD RP18 (Kapton Version) revisited, open back version.

Logged

Hands

  • Pizza the Hutt
  • Mate
  • Pirate
  • ****
  • Brownie Points: +331/-8
  • Offline Offline
  • Posts: 1591
  • Master of Revelatory Bird Calls and Fine Art
Re: NAD RP18 (Kapton version) Measurements
« Reply #34 on: August 12, 2014, 04:20:15 AM »

Really love the look of your headphones! Seems you are doing a good job tuning them as well.
Logged
The other master and I invite you to visit our digital museum of fine art and revelatory bird calls: https://www.facebook.com/SchrodsonkMuseum

Solderdude

  • Grab the dScope Kowalski!
  • Able Bodied Sailor
  • Pirate
  • ***
  • Brownie Points: +206/-4
  • Offline Offline
  • Posts: 907
  • No can do skipper, the dScope was terminated
    • DIY-Audio-Heaven
Re: NAD RP18 (Kapton version) Measurements
« Reply #35 on: August 18, 2014, 06:02:41 PM »

Great work   :)p1

That test rig really is paying off.
It is MUCH easier to mod once you can 'see' what you are doing.
Logged
Use your ears to enjoy music, not as an analyser.

MuZo2

  • Able Bodied Sailor
  • Pirate
  • ***
  • Brownie Points: +10/-2
  • Offline Offline
  • Posts: 201
Re: NAD RP18 (Kapton version) Measurements
« Reply #36 on: August 27, 2014, 12:47:12 PM »

Nice, What mods were done?
Logged

stratocaster

  • Able Bodied Sailor
  • Pirate
  • ***
  • Brownie Points: +64/-0
  • Offline Offline
  • Posts: 200
Re: NAD RP18 (Kapton version) Measurements
« Reply #37 on: August 27, 2014, 03:14:08 PM »

..what mods were done?
HifiMan HE500 velour pads and some damping inside the cups, nothing voodoo.
« Last Edit: September 25, 2014, 06:12:35 PM by stratocaster »
Logged
