Re: yesssssss, I finally got them! Technics sb7000a!
« Reply #20 on: October 30, 2014, 05:29:48 AM »

I finally got some felt at local arts and crafts store and replaced the crappy foam with this felt. It was highly recommended by an ak'er when I looking for suggestions about external damping material for the midrange and tweeter since I wanted to do something without ruining the cabs.

Not best cut or placement in the world but I atleast tried my best without screwing up. Took me a long time to cut the felt perfectly for the midrange since I doubled the felt there to reach as close to the midrange as possible. I think it turned out fine. Now that im finish working on these I can just start listening to some music.

I just need to buy some brasso to polish the metal plates on the tweeters and some lemon oil to polish the wood. Finish finally though since been busy all week especially since Halloween is like in a day or so.

Edit: I try to upload a photo later. Some reason it's not letting me now.
« Last Edit: October 30, 2014, 11:27:48 AM by RexAeterna »
Logged
''I'm a music lover. Not an audiophile.''

''The World is Study.''

''I have no special talent. I am only passionately curious.''

''Logic will get you from A to B. Imagination will take you everywhere.''

Drakkard

  • Powder Monkey
  • *
  • Brownie Points: +17/-4
  • Offline Offline
  • Posts: 96
  • Fischer Audio guy
Re: yesssssss, I finally got them! Technics sb7000a!
« Reply #21 on: November 18, 2014, 10:59:10 AM »

SB-7000 were hightly forced in Russia some years ago, so its now not a small amount around here. Was dreaming of them then, but never got a chance to listen personally. Nice ones, grats :)
Logged

RexAeterna

  • Gigolo of Gigolos
  • Mate
  • Pirate
  • ****
  • Brownie Points: +355/-1
  • Offline Offline
  • Posts: 1373
  • Friendship is magic
Re: yesssssss, I finally got them! Technics sb7000a!
« Reply #22 on: November 18, 2014, 01:06:46 PM »

SB-7000 were hightly forced in Russia some years ago, so its now not a small amount around here. Was dreaming of them then, but never got a chance to listen personally. Nice ones, grats :)

I kinda forgot about this thread...anyhoo,  yea, for some reason I was always curious when I was looking the up, a lot of info and vids were from russian sites besides japanese ones. Don't know why technics decide to have more popular market there in than the US.

Thanks. these are really special speakers I think. Besides being cool and interesting looking they sound very, very good. I recently cleaned up the dust caps and got them brand new looking. The dust caps are cloth but with like foam layer over them. They do over time the foam starts to decay. Don't know why technics decided to do that for but I managed to wipe it all off. Was gonna add new speaker posts at first but the originals work fine and easy to use. Just later down the road I probably redo the felt I have underneath the midrange an tweeters cause I didn't get it perfect way I wanted to first time around. Overall I really like these little guys and gonna keep them around.

Here's the dust caps all clean (picture should be in attachment).
Logged
''I'm a music lover. Not an audiophile.''

''The World is Study.''

''I have no special talent. I am only passionately curious.''

''Logic will get you from A to B. Imagination will take you everywhere.''

RexAeterna

  • Gigolo of Gigolos
  • Mate
  • Pirate
  • ****
  • Brownie Points: +355/-1
  • Offline Offline
  • Posts: 1373
  • Friendship is magic
Re: yesssssss, I finally got them! Technics sb7000a!
« Reply #23 on: November 21, 2014, 02:08:08 PM »

I decided to tinker with them more. Decided redo the bass cab, midrange cab, and tweeter back cover.

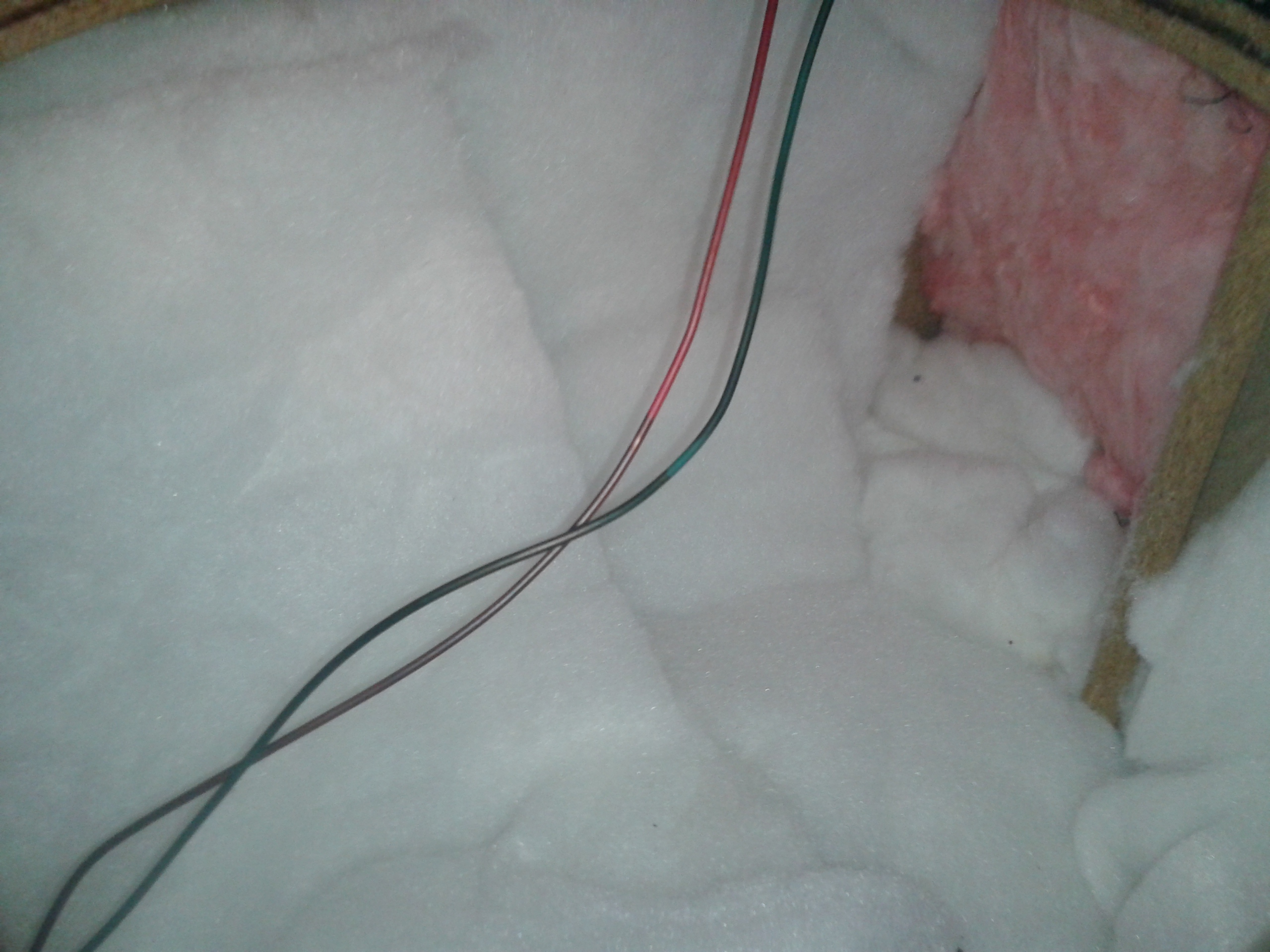

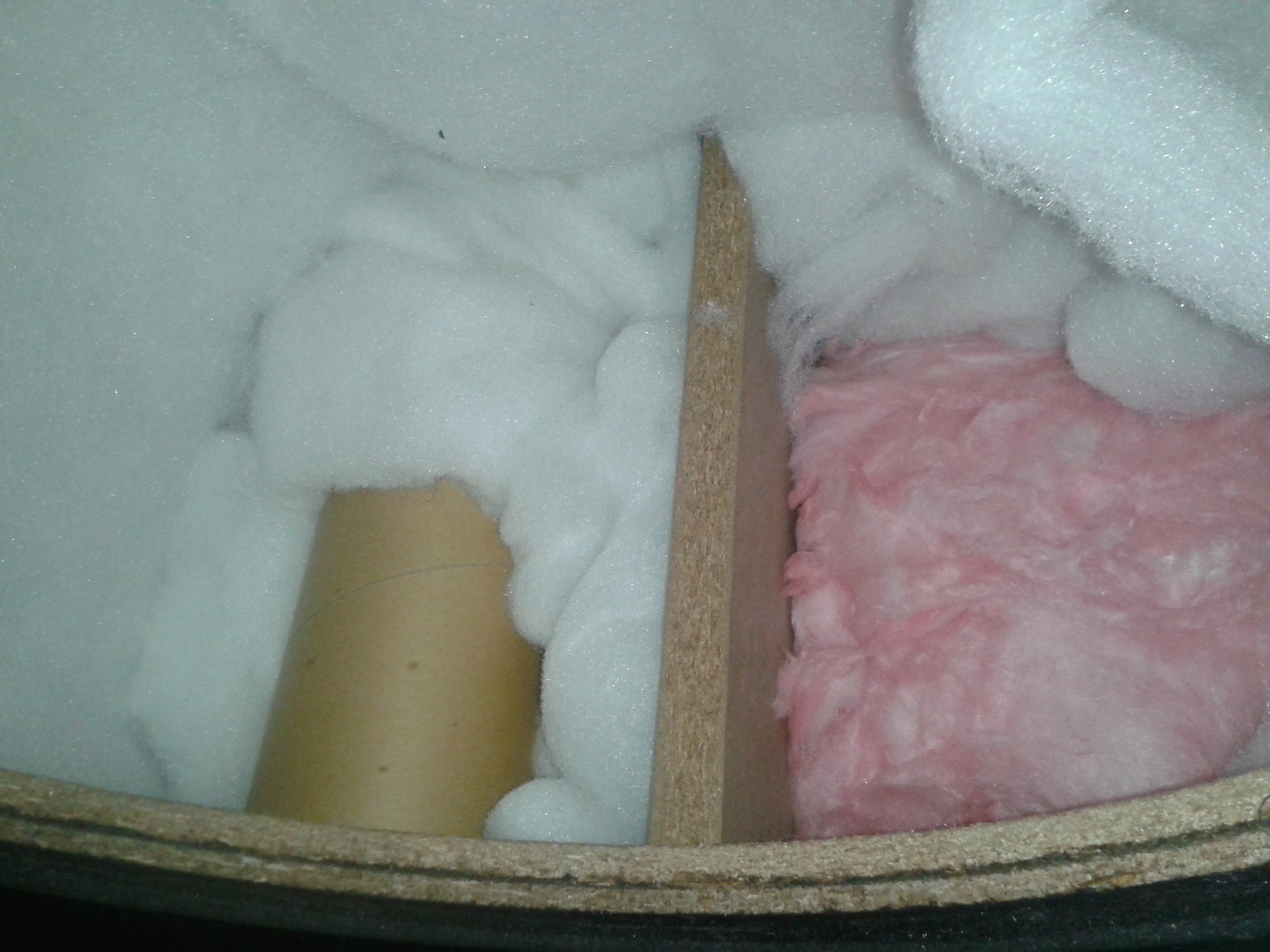

I decided to take lot of the pillow stuffing out in the bass cab and kept layer along the walls. Stuffed bit around the port too. I placed some 9" thick r30 fiberglass on the floor of the cab underneath the port. Looking at design original sb7000 model without the port it used like a loaded cavity so I tried simulating that by plugging the port up and just placing fiberglass on the floor underneath the port section. Don't think these 14" woofers weren't designed for a ported design anyways. Found out these woofers are similar to the jbl le14 14" professional woofers so most likely do better in proper closed design.

I restuffed the midrange cab with some same density fiberglass. These midranges are heavy and use an unusually large size magnet....

The tweeters were kinda pain in the ass. They weren't kidding that they use an unusually powerful magnet for the domes. I took the back plate off and looked inside. Looks interesting,  kinda looks like a planer like design on how the magnet is. It already has fiberglass layer behind the dome in a cavity but I decided it couldn't hurt stuffing bit in the cup/plate.

I know no one cares but since there is very limited information or experience with these I would like to keep people up to date with these. One thing digging around atleast I know won't be hard finding woofers for these if I ever need to replace them. Seems JBL made some odd ball 14" cloth woofers too. Only drivers that will be hard to replace on these are the tweeters if they ever go.
Logged
''I'm a music lover. Not an audiophile.''

''The World is Study.''

''I have no special talent. I am only passionately curious.''

''Logic will get you from A to B. Imagination will take you everywhere.''

Azteca X

  • Audio Tlatoani
  • Able Bodied Sailor
  • Pirate
  • ***
  • Brownie Points: +27/-1
  • Offline Offline
  • Posts: 232
Re: yesssssss, I finally got them! Technics sb7000a!
« Reply #24 on: November 21, 2014, 02:41:24 PM »

Cool stuff, Rex, thanks. Like I said, gf's dad has a pair and they're just sitting in their garage. I think there was a torn woofer so now I'm tempted to fix them up...nowhere for me to put them, though.
Logged

RexAeterna

  • Gigolo of Gigolos
  • Mate
  • Pirate
  • ****
  • Brownie Points: +355/-1
  • Offline Offline
  • Posts: 1373
  • Friendship is magic
Re: yesssssss, I finally got them! Technics sb7000a!
« Reply #25 on: November 21, 2014, 03:10:40 PM »

Cool stuff, Rex, thanks. Like I said, gf's dad has a pair and they're just sitting in their garage. I think there was a torn woofer so now I'm tempted to fix them up...nowhere for me to put them, though.

They are worth a fix up. They are good sounding speakers. If end up not liking them you can easily sell them for profit. The tweeters alone can go for avg of 150 a piece if working (last time I checked) or can always find someone to make a trade for something. I don't know. I think these are keepers though for me atleast.

If it's small tear, that can easily be repaired. I would just check the tweeters first cause some reason they were supposedly known to be blown easily or somehow become shifted from the magnet locking the drivers up.

The speakers aren't super large but pretty bulky. They're pretty heavy too at 75lbs each so moving them around can be bit annoying. The handles do help lot though. They can fit in a medium size room easily if don't have much furniture already. My room is considered medium size at 15'x15' even though I find it big and they fit perfectly here.
Logged
''I'm a music lover. Not an audiophile.''

''The World is Study.''

''I have no special talent. I am only passionately curious.''

''Logic will get you from A to B. Imagination will take you everywhere.''

RexAeterna

  • Gigolo of Gigolos
  • Mate
  • Pirate
  • ****
  • Brownie Points: +355/-1
  • Offline Offline
  • Posts: 1373
  • Friendship is magic
Re: yesssssss, I finally got them! Technics sb7000a!
« Reply #26 on: November 22, 2014, 05:14:06 AM »

Kinda had a scare earlier lol. My left speaker volume gotten real low..it was the tweeter..... I took the tweeter off the cab, unscrewed the front plate that has the tweeter attached and carefully looked at it. The voice coil looked fine and the strands from the voice coil to the terminals looked fine.

So, I decided to see if realigning the voice coil to the magnet works and...it did! Volume level came back to normal.

Had no idea what caused it to be unalign. I only ever moved them to stuff the bass cabs and I moved them carefully and after that they were working perfectly.

I wonder if my amp sent a weird surge/signal to them when I was messing with wires and rca cables back of my amp....anyhoo,

Looking at the domes there was little piece of fiberglass in there and the voice coil looked gold...not copper like usual voice coils. Wonder if it's gold plated copper but, why would they use that for a tweeter? Weird... but, yea, they work like new now and all fixed. I mean like wtf! Though...dont know what happened.
