Author Topic: Beyerdynamic DT770 Premium 250 Ohm  (Read 2230 times)

0 Members and 1 Guest are viewing this topic.

Bill-p

  • Would you like graphs with that?
  • Mate
  • Pirate
  • ****
  • Brownie Points: +49/-14
  • Offline Offline
  • Posts: 336
  • Midrange-head
Re: Beyerdynamic DT770 Premium 250 Ohm
« Reply #10 on: March 27, 2015, 03:54:35 AM »

And... front damping applied. No not felt. Felt didn't do squat. Even when there are like... 3 layers of it. I think felt only increases decay at low frequencies, and doesn't really dampen high frequencies.

So how did I do it? Try... tissue, or some form of thick paper.

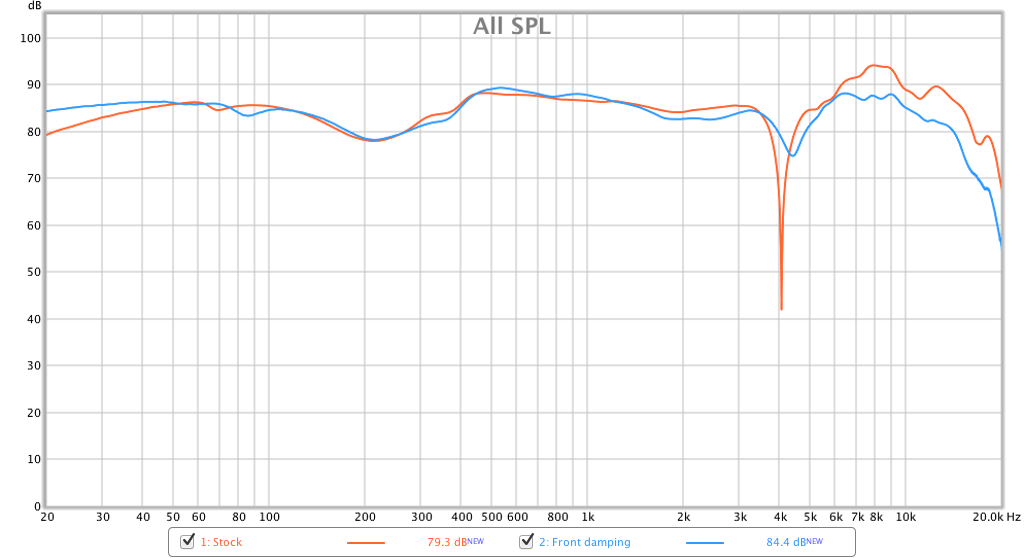

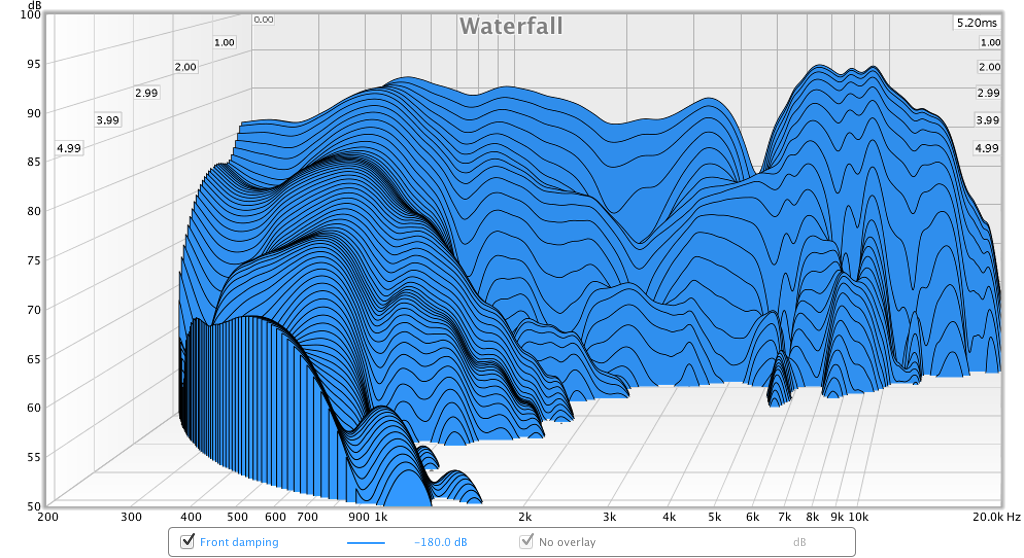

Measurement of the result attached. I used 2 layers of tissues underneath, then a piece of felt on top (makes things more "romantic"). No longer bright or piercing. Sounds... almost right. Save for that dip at lower frequencies.

And yeah, bass was raised. I don't think it's a measurement artifact. I think what happens is... the paper Beyer used is still not completely sealed, so the driver couldn't pressurize the back chamber as much for bass. And now it can.

Funny enough, dip at 4KHz is now much less pronounced in FR as well. Removing front damping causes it to rise up again. Now I'm at a loss on how to explain it... though treble does sound a lot less rough.
Logged

spoony

  • 5 years late on rickrolling
  • Able Bodied Sailor
  • Pirate
  • ***
  • Brownie Points: +13/-0
  • Offline Offline
  • Posts: 274
  • ex c61746961
Re: Beyerdynamic DT770 Premium 250 Ohm
« Reply #11 on: March 27, 2015, 04:33:14 AM »

Some felts work, some don't. 1-4mm wool textiles often do the trick, so does paper.
Logged

Bill-p

  • Would you like graphs with that?
  • Mate
  • Pirate
  • ****
  • Brownie Points: +49/-14
  • Offline Offline
  • Posts: 336
  • Midrange-head
Re: Beyerdynamic DT770 Premium 250 Ohm
« Reply #12 on: March 27, 2015, 04:36:51 AM »

I guess I should try out different kinds of felt, then... but even layering up 3 layers of 2mm thick felt didn't really do much, so I sort of doubt that other kinds of felt would do.
Logged

Bill-p

  • Would you like graphs with that?
  • Mate
  • Pirate
  • ****
  • Brownie Points: +49/-14
  • Offline Offline
  • Posts: 336
  • Midrange-head
Re: Beyerdynamic DT770 Premium 250 Ohm
« Reply #13 on: April 17, 2015, 02:49:20 AM »

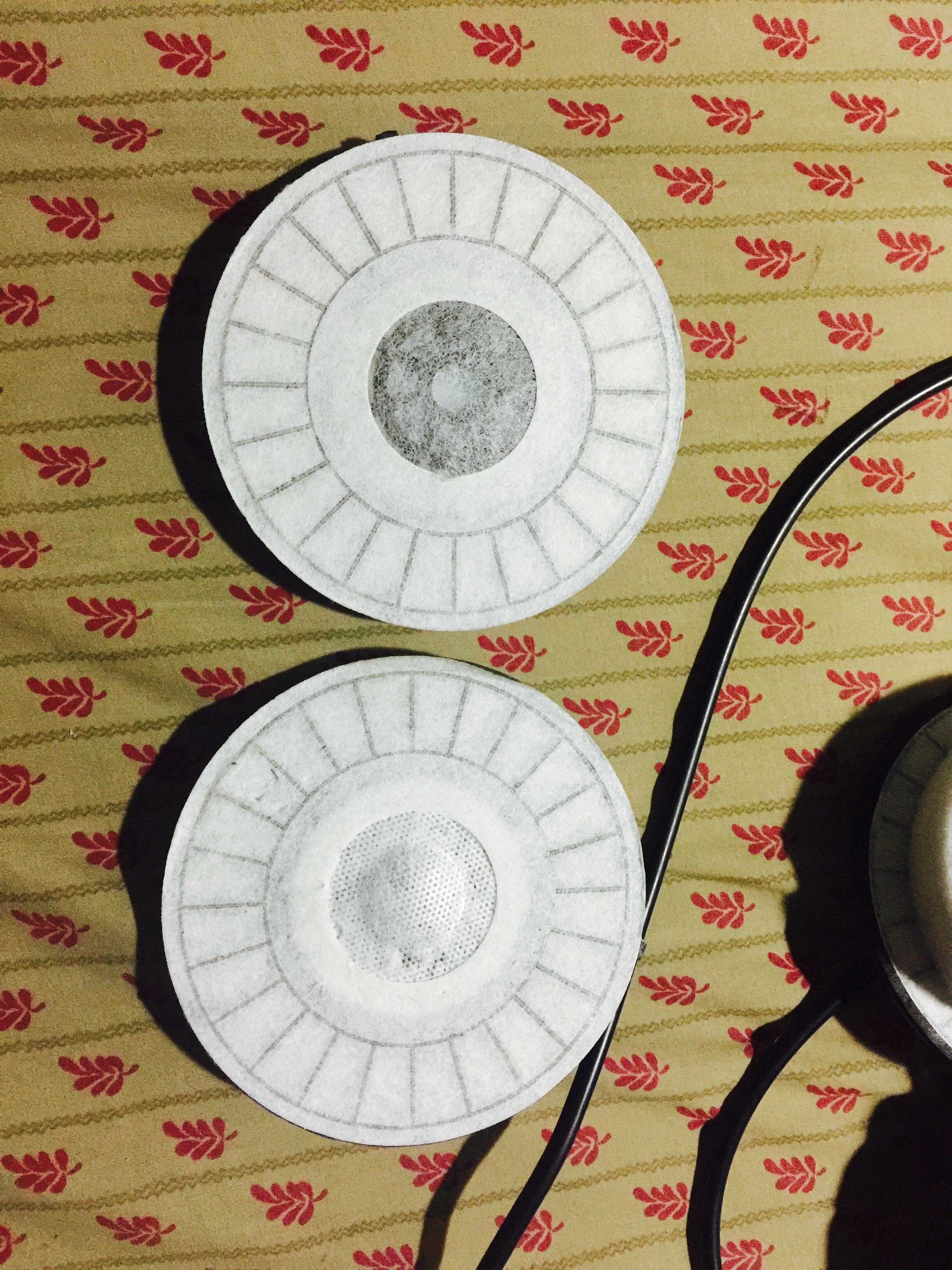

2 different looking drivers, both 250 Ohm, and both fit into DT770.

Subjectively, one is brighter than the other. It's the one with the metallic looking "dome" thing under the paper layer.

Measurements and stuffs incoming... (will probably have to wait until this weekend when I have more time to solder)
Logged

Armaegis

  • Uphill, both ways
  • Able Bodied Sailor
  • Pirate
  • ***
  • Brownie Points: +76/-3
  • Offline Offline
  • Posts: 883
  • metallurgist, rocket scientist, swing dancer
Re: Beyerdynamic DT770 Premium 250 Ohm
« Reply #14 on: April 17, 2015, 04:02:29 AM »

Are those both from 770's?

Any why haven't you slapped some tesla drivers in there yet?  :P
Logged
Do you think there may be an acoustic leak from the jack hole? ~Tyll Hertsens

Not sure if I like stuffing one hole or both holes. Tending toward one hole since both holes seems kinda ghey ~Purrin

Bill-p

  • Would you like graphs with that?
  • Mate
  • Pirate
  • ****
  • Brownie Points: +49/-14
  • Offline Offline
  • Posts: 336
  • Midrange-head
Re: Beyerdynamic DT770 Premium 250 Ohm
« Reply #15 on: April 17, 2015, 04:34:57 AM »

I do have a Tesla headphone here... T5P. :P

Will get to work on it once I'm done with DT770.

And this means I'll have another working pair of DT770 in the Pro body. Would be cool for comparisons and stuffs. :)
Logged

graean

  • Able Bodied Sailor
  • Powder Monkey
  • ***
  • Brownie Points: +32/-0
  • Offline Offline
  • Posts: 36
Re: Beyerdynamic DT770 Premium 250 Ohm
« Reply #16 on: April 27, 2015, 07:27:37 AM »

I have a dt770 pro. For front damping, I used about 13 sheets of toilet papet, uncut. I laid them two at a time (crosswise to another, so it looked star-shaped instead of a rectangle/square shape). I added a little polyfill under the ear pads. Then I ripped the layers one at a time, so by the time I got the last layer, the front damping tapered down. So the damping is cone shaped, basically. I won't be rigorous, but the macro and microdynamics improved. Say, punch, pianofortes, crescendos, sound envelope. Right now it's leaning toward a warmish sound, but all the instruments sound fairly correct. I also have polyfill in the cavity,  the bass cage removed, and the previous acoustic tape removed, so that could partly account for the warm sound.

Thanks for the paper in front of the driver damping idea, Bill.
Logged

Cryptowolf

  • Turns 13 in July
  • Powder Monkey
  • *
  • Brownie Points: +4/-1
  • Offline Offline
  • Posts: 23
    • Wolf in Suit
Re: Beyerdynamic DT770 Premium 250 Ohm
« Reply #17 on: May 06, 2015, 06:11:09 PM »


I agree and prefer the bass extension on the DT-880 250 ohm versus the DT-770.  I think the semi-open DT-880 helps tame the harsher sound of the stock 770.  IMHO.
